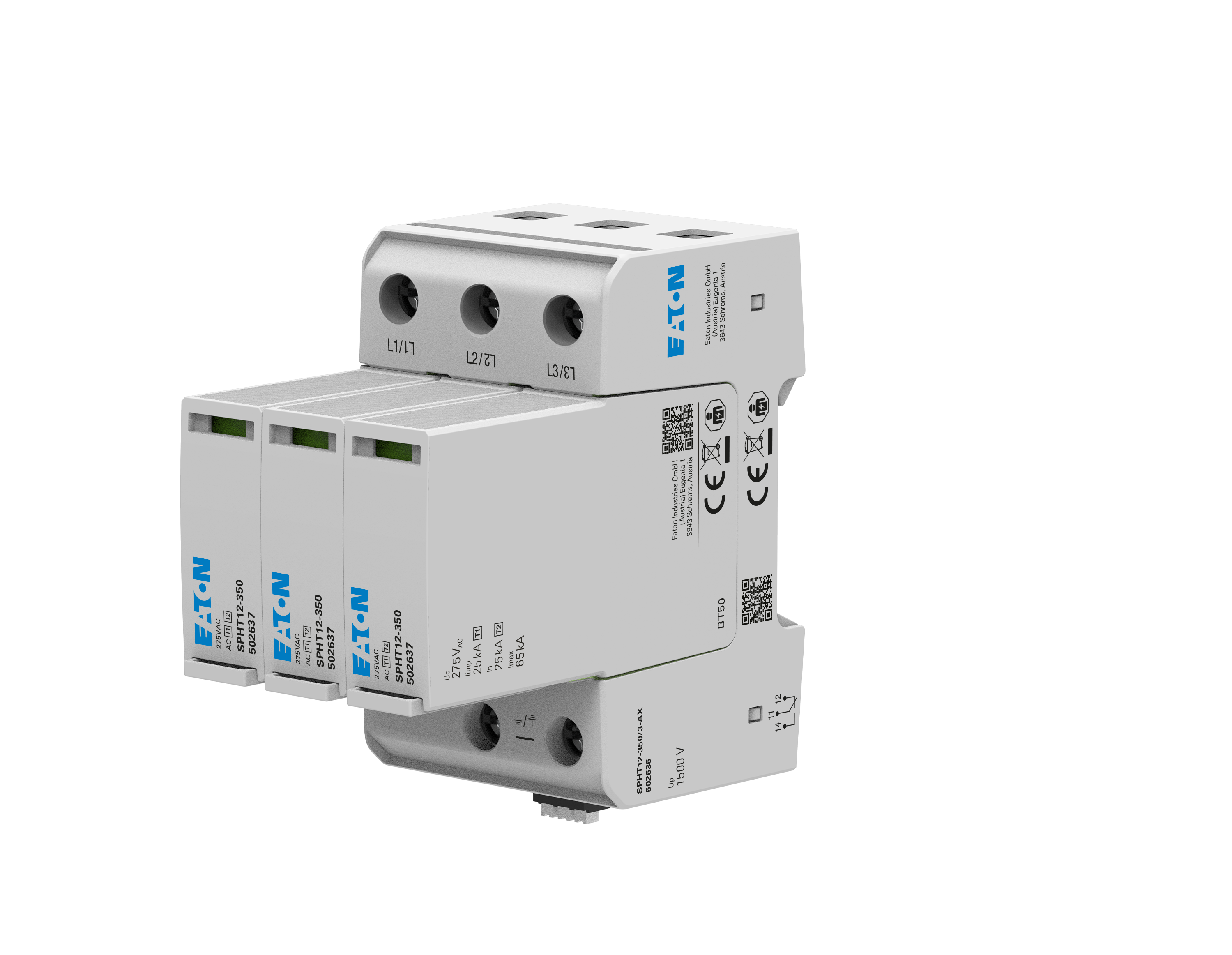

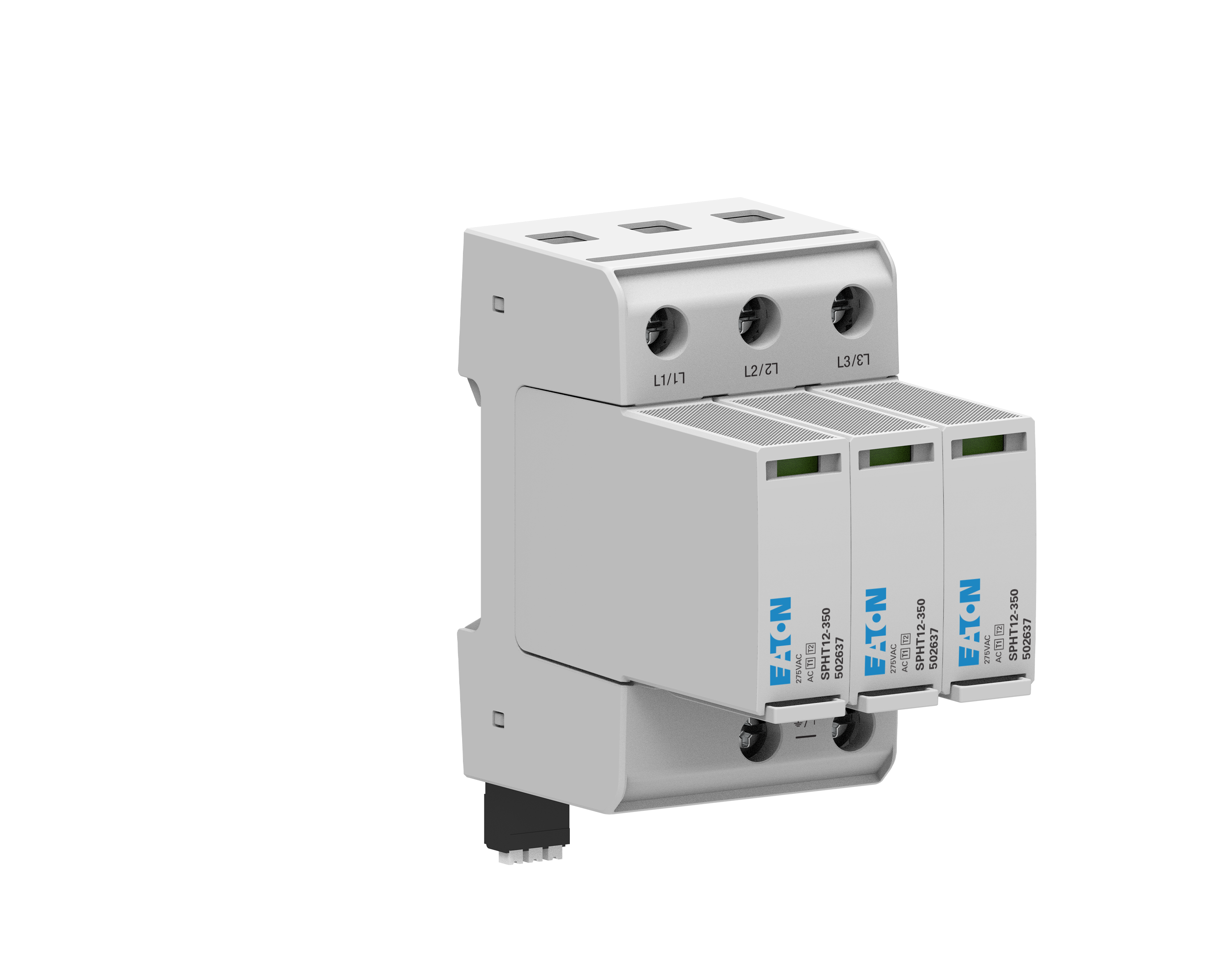

Overspenningsvern SPHT12 3p 350VAC AX
Product number
1606521
SPHT12-350/3-AX
Komplett overspenningsvern, Type 1 og 2 for bruk i kritisk infrastruktur med eksternt lynvernsystem, 3 polt, 350VAC, 50kA, inkludert hjelpekontakt
Product details
Technical specifications
System configuration DCno
System configuration ITno
System configuration TNno
System configuration TN-Cyes
System configuration TN-C-Sno
System configuration TN-Sno
System configuration TTno
System configuration otherno
Number of conductors (without earthing)3
Lightning impulse current (10/350 µs)25 kA
Nominal discharge surge current (8/20)25 kA
Max. continuous voltage AC275 V
Max. continuous voltage DC0 V
Nominal voltage AC240 V
Nominal voltage DC0 V
Product codes
SAPDLF375
El number1606521
Product number1606521
GTIN/EAN9010653085270
Manufacturer part numberEP-502636
Vendor material number1606521
Basic information
Package measurements (L x W x H)105 x 54 x 86 mm
Package volume0.488 l
Package weight0.54 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginSI Slovenia
Customs tariff code85363000
