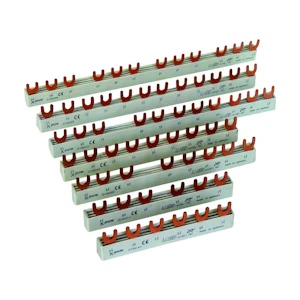

Samleskinne Pkpm Tn 3+N 8 Stk Evg-16/4Phas/L-N-X/8Pc
Product number
1654949
EVG-16/4PHAS/L-N-X/8PC
Samleskinne for TN400V til 3 modul JFA
Product details
Technical specifications
Number of phases4
Number of poles4
Suitable for number of devices2
Module width17.8 mm
Cross section16 mm²
Length415 mm
Width in number of modular spacings24
Rated permanent current Iu80 A
Type of electric connectionFork
Insulatedno
Rated surge voltage4 kV
Conditioned rated short-circuit current Iq25 kA
Max. rated operation voltage Ue415 V
Rated short-time withstand current lcw0 kA
Suitable for devices with N-conductorno
Product codes
SAPDJE328
El number1654949
Product number1654949
GTIN/EAN4015081166213
Manufacturer part number116881
Vendor material number1654949
Basic information
Package measurements (L x W x H)415 x 14 x 31 mm
Package volume0.18 l
Package weight0.254 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginDE Germany
Customs tariff code85369010
