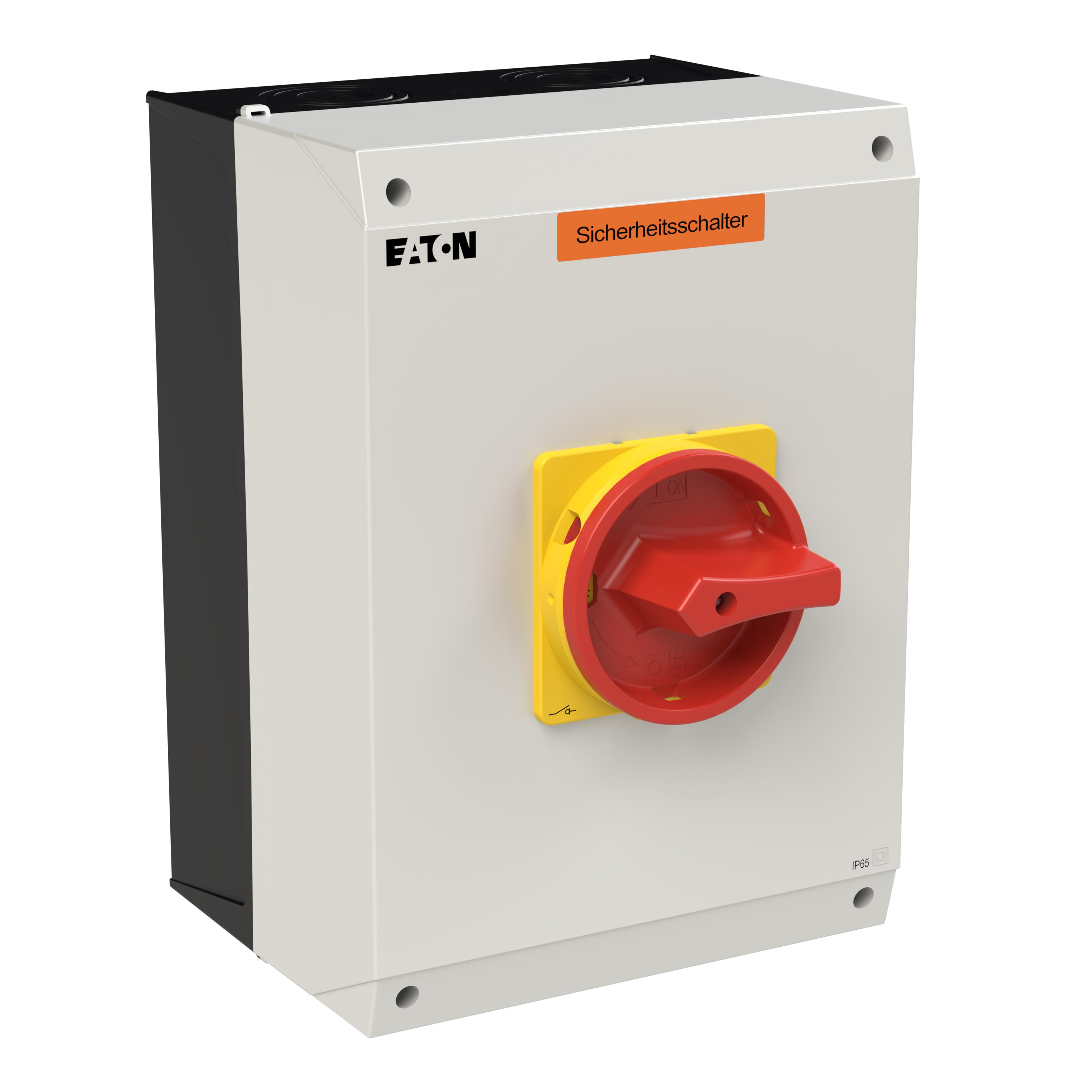

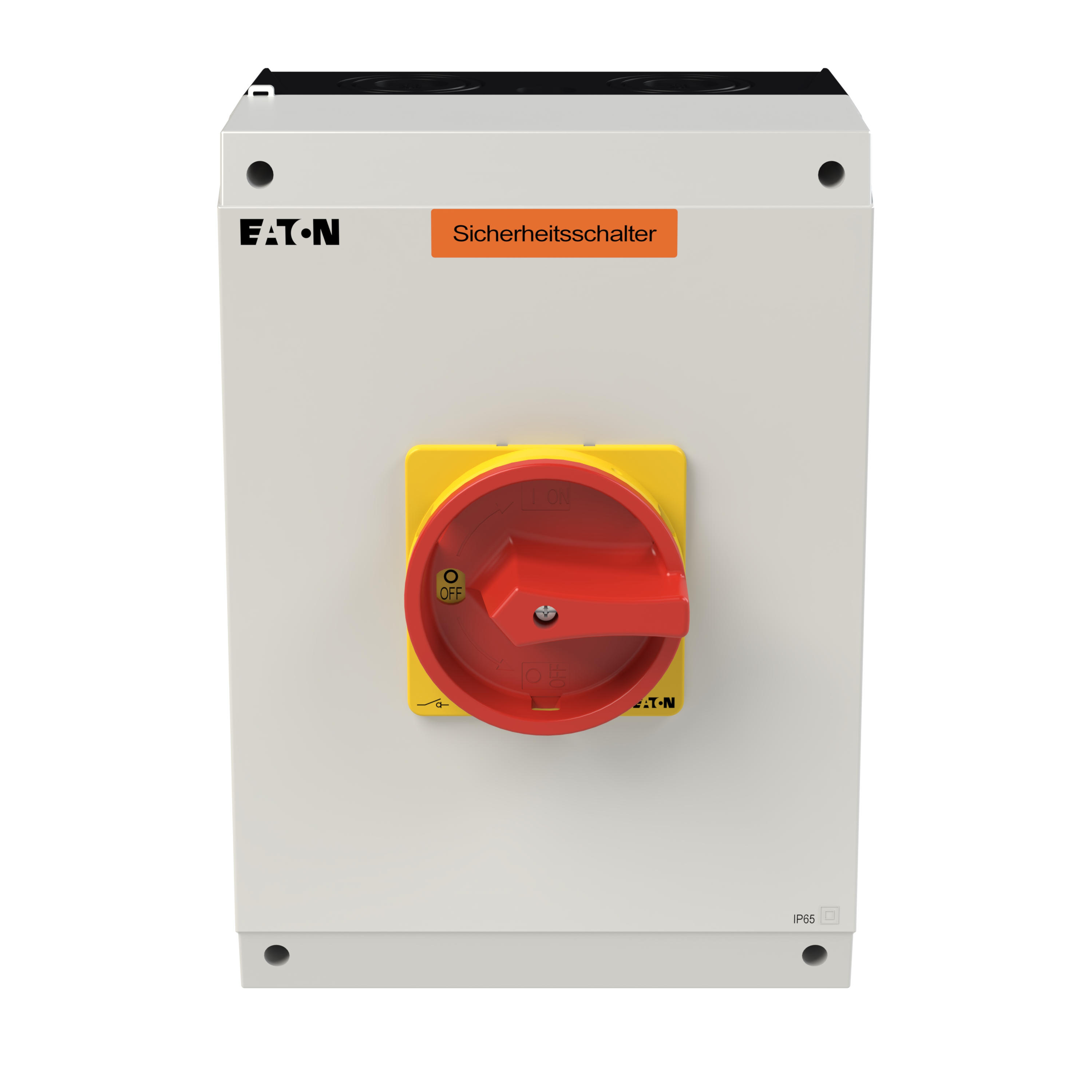

Sikkerhetsbryter P3 80A 4-pol P3-80/I5-SI/N
Product number
1414098
P3 Sikkerthets bryter, 80 A,På montasje, 4 pole, Form I5-SI, Red, Door coupling rotary drive
Sikkerhetsbryter, Produkt område: Sikkerhetsbryter, Produkt gruppe referanse:: P3, Stopp funksjon: Nød stopp funksjon, Med rød håndtak og gul låsering, Notes: med varsel skilt „Safety switch”, Produktinformasjon: Hjelpekontakt utstyres av bruker., 3 pol + N, Lås: Låsbar i 0-stilling med med låsing av deksle, Beskyttelsesgrad: IP65, Design: På-montasje, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Product details
Technical specifications
Version as main switchno
Version as maintenance-/service switchno
Version as safety switchyes
Version as emergency stop installationyes
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 - 690 V
Rated permanent current Iu80 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V80 A
Rated operation power at AC-3, 400 V30 kW
Rated short-time withstand current lcw2 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V55 kW
Product codes
SAPDHU564
El number1414098
Product number1414098
GTIN/EAN4015082963750
Manufacturer part numberEP-400996
Vendor material number1414098
Basic information
Package measurements (L x W x H)295 x 210 x 280 mm
Package volume17.346 l
Package weight1.539 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
