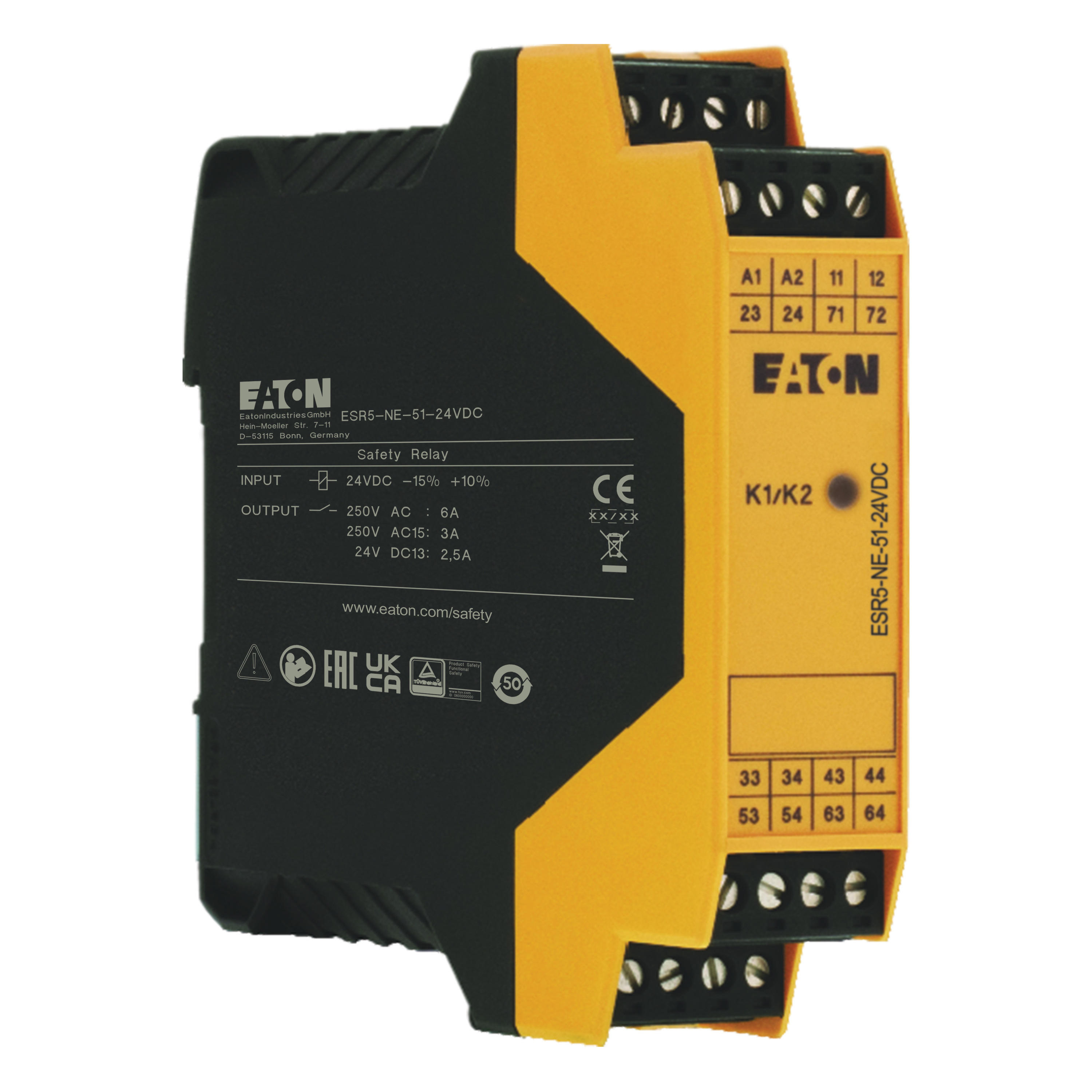

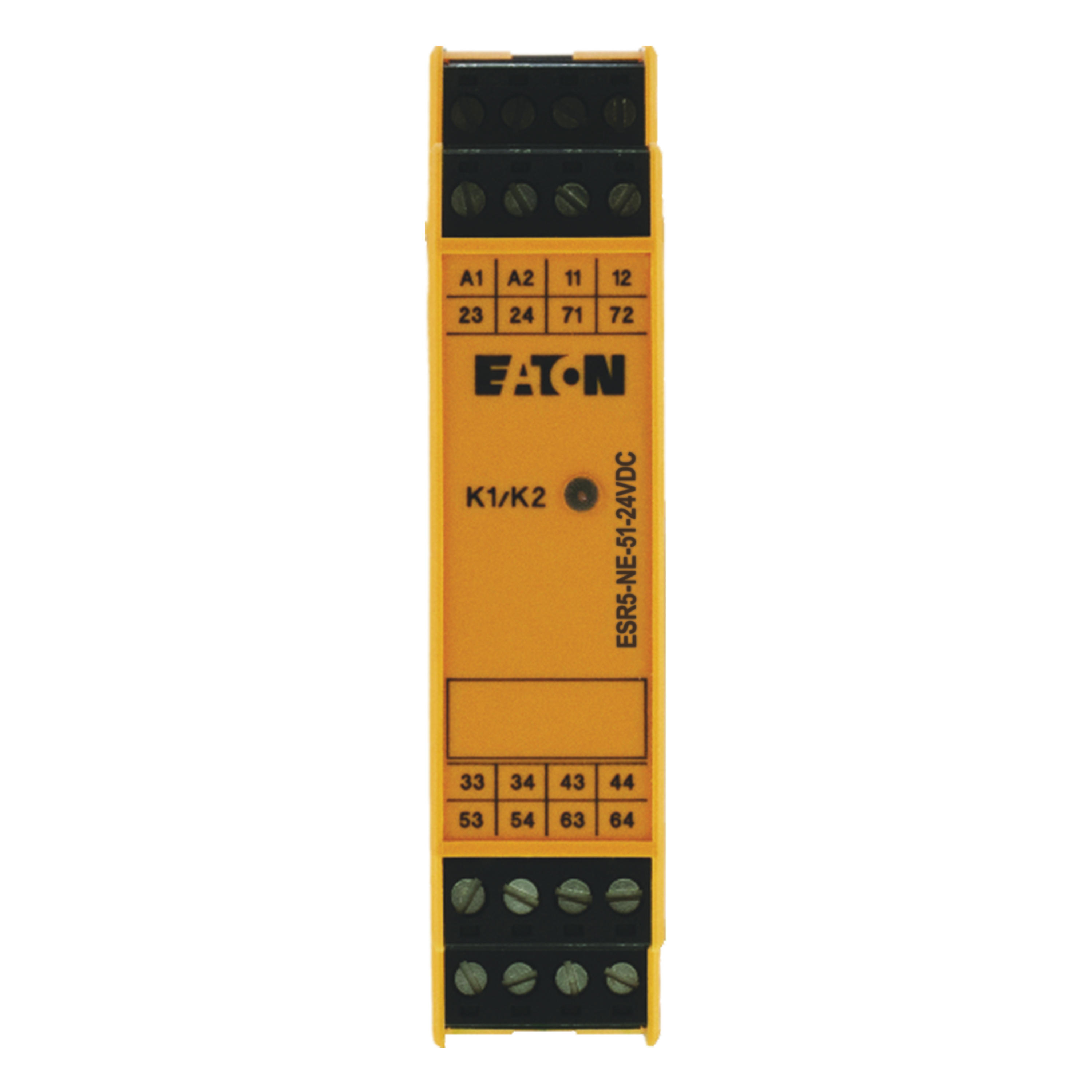

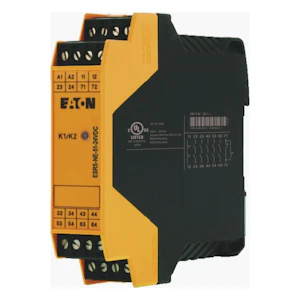

Sikkerhetsrele kontaktutv. ESR5-NE-51-24VDC
Product number
4120424
Sikkerhetetsrele Contact Extension, 5 Enabling + 1 Signaling Paths, 24V DC
Sikkerhetetsrele Contact Extension, 5 Enabling + 1 Signaling Paths, 24V DC, Detachable clamps, Start input, Feedback circuit, godkjent etter UL, godkjent for TÜV
Product details
Technical specifications
ModelExpansion device
Suitable for rail mountingyes
With detachable clampsyes
Type of electric connectionScrew connection
Voltage type (supply voltage)DC
Supply voltage AC 50 Hz0 - 0 V
Supply voltage AC 60 Hz0 - 0 V
Supply voltage DC0 - 24 V
Suitable for monitoring of position switchesyes
Suitable for monitoring of emergency-stop circuitsyes
Suitable for monitoring of valvesyes
Suitable for monitoring of optoelectronic protection equipmentno
Suitable for monitoring of tactile sensorsyes
Suitable for monitoring of magnetic switchesyes
Suitable for monitoring of proximity switchesyes
Product codes
SAPDHP297
El number4120424
Product number4120424
GTIN/EAN4015082965150
Manufacturer part number401063
Vendor material number4120424
Basic information
Package measurements (L x W x H)114.5 x 22.5 x 99 mm
Package volume0.255 l
Package weight0.229 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginDE Germany
Customs tariff code85364900
