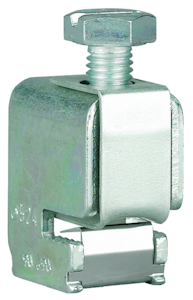

Tilk. Klemme 4-35mm², f 10mm AKU35/10
Product number
2465030
AKU35/10
SASY 60i - Samleskinnesystem 630A
VDE0660 DEL500 IEC/EN60439-1
Farge: RAL 7035
Ue = 690V, 50/60Hz
Ipk = 50 kA
Product details
Technical specifications
Busbar thickness10 - 10 mm
Busbar width0 - 0 mm
Suitable forFlat rail
Width clamp15.5 mm
Max. conductor cross section35 mm²
Max. rated operation current Ie270 A
Suitable for round conductor connectionyes
Suitable for sector conductor connectionyes
Suitable for strip conductor connectionyes
Product codes
SAPGBS946
El number2465030
Product number2465030
GTIN/EAN4015081069552
Manufacturer part number107192
Vendor material number2465030
Basic information
Package measurements (L x W x H)0.016 x 0.029 x 0.035 mm
Package volume0.016 l
Package weight0.048 kg
Base uniteach
Package units50
Usage quantity1
UNSPSC39121421
BrandEATON
Country of OriginDE Germany
Customs tariff code85369010
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.1615
GWP uniteach
Data source for GWPEandoX
