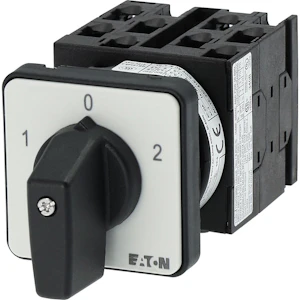

Vendebryter 4p innfelt T0-4-8213/E
Product number
1417028
T0-4-8213/E
Omkoblingsbryter, Produktsortiment: Kontrollbrytere, Delgruppereferanse: T0, med svart tommelfingerhåndtak og frontplate, Kontakter: 8, Beskyttelsesgrad: Front IP65, Design: Spolmontasje, Brytervinkel: 60 °, Bryterytelse: Med 0 (Off) -posisjon, frontplate: 1-0-2, Motorvurdering AC-23A, 50 - 60 Hz 400 V: P = 5,5 kW, Nominell kontinuerlig strøm: Iu = 20 A, 4 kontaktenheter, Standarder: IEC / EN 60947, VDE 0660, IEC / EN 60204, CSA, UL, Lastbryter i henhold til IEC / EN 60947-3
Product details
Technical specifications
ModelReverser
Number of poles4
With zero (off) positionyes
With retraction in 0-positionno
Rated permanent current Iu20 A
Rated operation current Ie at AC-3, 400 V11.5 A
Rated operation power at AC-3, 400 V4 kW
Degree of protection (IP), front sideIP65
Degree of protection (NEMA), front side12
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for distribution board installationno
Product codes
SAPCCY155
El number1417028
Product number1417028
GTIN/EAN4015080317265
Manufacturer part number031726
Vendor material number1417028
Basic information
Package measurements (L x W x H)105 x 48 x 48 mm
Package volume0.242 l
Package weight0.156 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
Country of OriginGB United Kingdom
Customs tariff code85365000
