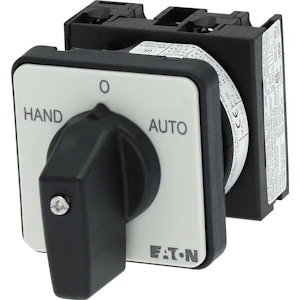

Vendebryter T0-1-15431/E

Product number
1456294
T0-1-15431/E
Vendebryter, Produkt rekkevidde Vendebryteres, Standarder IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Sikkerhetsbryter i henhold til IEC/EN 60947-3, gruppereferanse: T0, med sort grep og frontplate, Kontakter: 2, Beskyttelsesgrad Front IP65, Design: innfelt montasje, Betjeningsvinkel: 45 °, Betjeningstype: vedlikeholdt, Med 0 (AV) posisjon, 1 kontakter, Strøm: Iu= 20 A, front plate: HAND-0-AUTO

Product details

Technical specifications

Complete device in housingfalse
Degree of protection (IP), front sideIP65
Degree of protection (NEMA), front side12
Device constructionBuilt-in device
Front shield size48x48 mm
Max. rated operation voltage Ue AC690 V
Number of poles1
Number of switch positions3
Rated permanent current Iu20 A
Suitable for distribution board installationfalse
Suitable for floor mountingfalse
Suitable for front mountingtrue
Suitable for intermediate mountingfalse
Switch functionReverser
Type of control elementToggle

Product codes

SAPGAG132
PLC1456294
STK1456294
GTIN/EAN4015080198727
Manufacturer part number019872
Vendor material number1456294

Basic information

Package measurements (L x W x H)76 x 48 x 48 mm
Package volume0.175 l
Package weight0.1 kg
Base uniteach
Package units1
Usage quantity
UNSPSC39121503
BrandEATON
