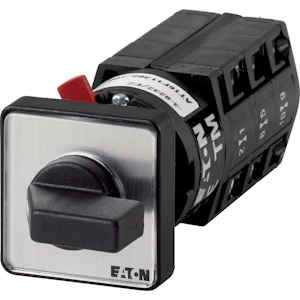

Vendebryter TM-3-15433/EZ
Product number
1456165
TM-3-15433/EZ
Vendebryter, Produkt rekkevidde Vendebryteres, Standarder IEC/EN 60947, VDE 0660, CSA, UL, Vendebryter i henhold til IEC/EN 60947-5-1, Hjelpekontakt i henhold til IEC/EN 60947-5-1, gruppereferanse: TM, med sort grep og frontplate, Kontakter: 6, Beskyttelsesgrad Front IP65, Design: sentermontasje, Betjeningsvinkel: 60 °, Betjeningstype: vedlikeholdt, Med 0 (AV) posisjon, 3 kontakter, Strøm: Iu= 10 A, front plate: HAND-0-AUTO
Product details
Technical specifications
Type of switchReverser
Number of poles3
Max. rated operation voltage Ue AC500 V
Rated permanent current Iu10 A
Number of switch positions3
With zero (off) positionyes
With retraction in 0-positionno
Device constructionBuilt-in device
Width in number of modular spacings0
Suitable for floor mountingno
Suitable for front mountingyes
Suitable for distribution board installationno
Suitable for intermediate mountingno
Complete device in housingno
Type of control elementWing knob
Product codes
SAPGAD535
El number1456165
Product number1456165
GTIN/EAN4015080454908
Manufacturer part number45490
Vendor material number1456165
Basic information
Package measurements (L x W x H)86 x 30 x 30 mm
Package volume0.077 l
Package weight0.06 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121503
BrandEATON
Country of OriginAT Austria
Customs tariff code85365000
