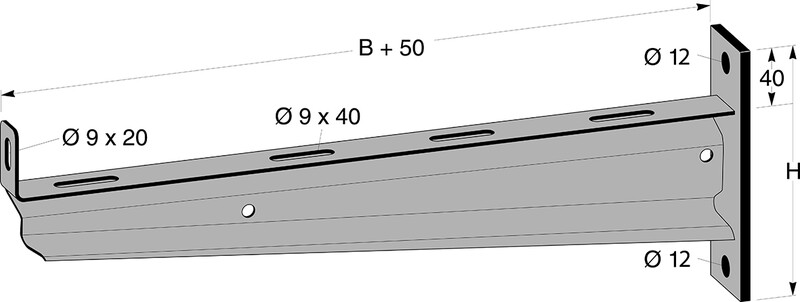

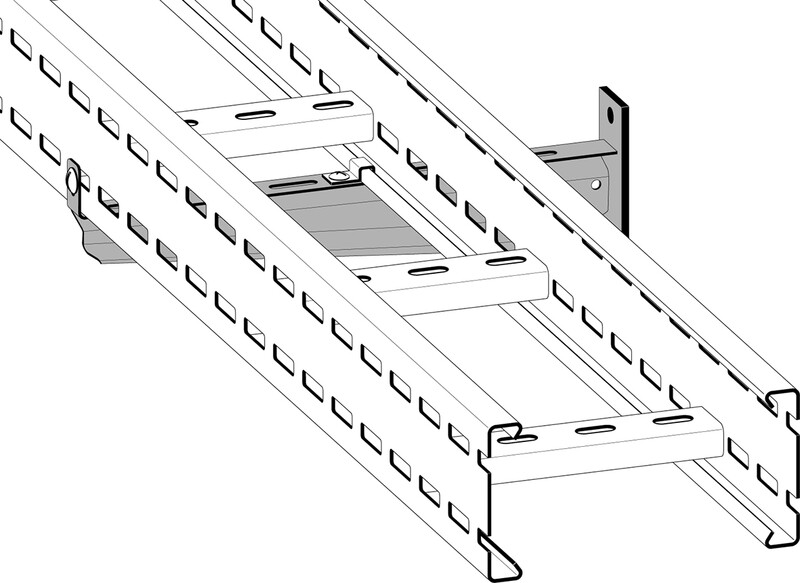

CANTILEVER ARM 300 MM
Product number
1352944
Wall bracket
Ved montasje benyttes monteringsskrue i fremkant og ved behov konsollklemmer i bakkant For porøse vegger bruk underlagsplate (13 531 77 eller 13 531 97)
Bruddlast: = 1,7ggr
Varmforsinket: 60 µm (maks miljøklasse C4)
Product details
Technical specifications
Length50 mm
Width350 mm
Height150 mm
Suitable for cable support system width300-300 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615374500 N
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
ColourStainless steel
RAL-number0
Product codes
SAPAIR243
El number1352944
Product number1352944
GTIN/EAN7394333099545
Manufacturer part numberMP-183Z2
Vendor material number1352944
Basic information
Package measurements (L x W x H)344 x 50 x 150 mm
Package volume2.58 l
Package weight0.8 kg
Base uniteach
Package units1 / 12
Usage quantity–
UNSPSC39131705
BrandELIS ELEKTRO
Country of OriginSE Sweden
Customs tariff code73089008
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A32.264
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
