CANTILEVER ARM 752R C5-M KL120MM 150KG AISI
Product number
1353331
Wall bracket
Veggkosoll for kabelstiger, gitterbaner og kabelrenner.
For porøse vegger bruk underlagsplate (13 531 77 eller 13 531 97)
Bruddlast: = 1,7ggr
Makslast: 150 kg.
Product details
Technical specifications

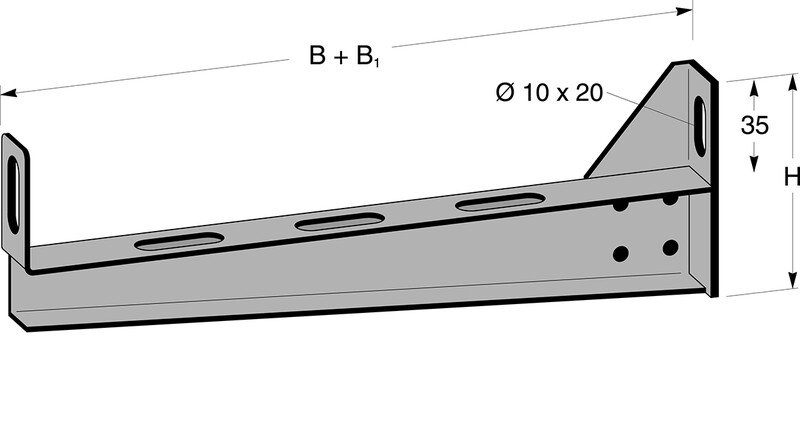

Length40 mm
Width190 mm
Height72 mm
Suitable for cable support system width120-120 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityno
MaterialSteel
Material qualityStainless steel 316 (1.4401)
Surface protectionUntreated
Operating temperature-40-120 °C
ColourStainless steel
RAL-number0
Product codes
SAPAIW340
El number1353331
Product number1353331
GTIN/EAN7394333054537
Manufacturer part numberMP-752R
Vendor material number1353331
Basic information
Package measurements (L x W x H)200 x 40 x 75 mm
Package volume0.6 l
Package weight0.15 kg
Base uniteach
Package units1 / 100
Usage quantity–
UNSPSC39131705
BrandELIS ELEKTRO
Country of OriginSE Sweden
Customs tariff code73089008
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.687
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
