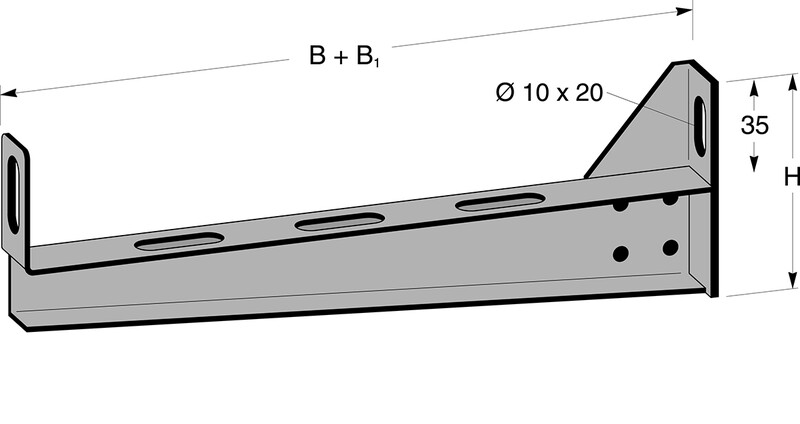

CANTILEVER ARM 755R C5-M KL400MM 150KG AISI
Product number
1353334
Wall bracket

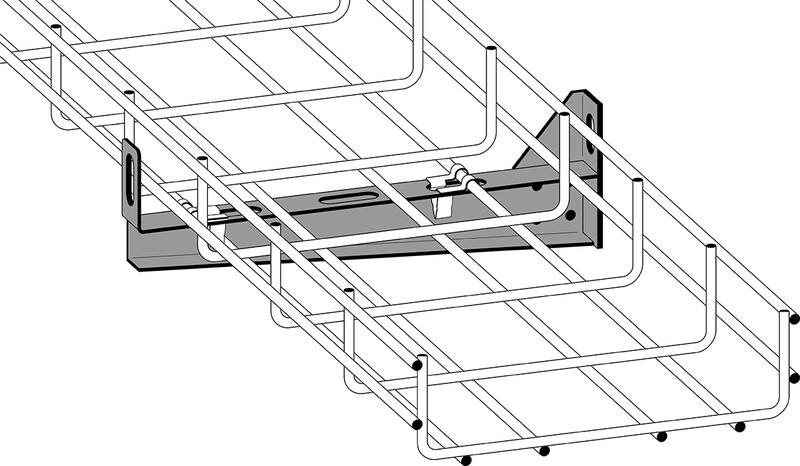

Veggkosoll for kabelstiger, gitterbaner og kabelrenner.
For porøse vegger bruk underlagsplate (13 531 77 eller 13 531 97)
Bruddlast: = 1,7ggr
Makslast: 150 kg.
Product details
Technical specifications
Length40 mm
Width440 mm
Height100 mm
Suitable for cable support system width400-400 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityno
MaterialSteel
Material qualityStainless steel 316 (1.4401)
Surface protectionUntreated
Operating temperature-40-120 °C
ColourStainless steel
RAL-number0
Product codes
SAPAIQ816
El number1353334
Product number1353334
GTIN/EAN7394333055473
Manufacturer part numberMP-755R
Vendor material number1353334
Basic information
Package measurements (L x W x H)450 x 40 x 90 mm
Package volume1.62 l
Package weight0.4 kg
Base uniteach
Package units1 / 40
Usage quantity–
UNSPSC39131705
BrandELIS ELEKTRO
Country of OriginSE Sweden
Customs tariff code73089008
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A31.832
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
