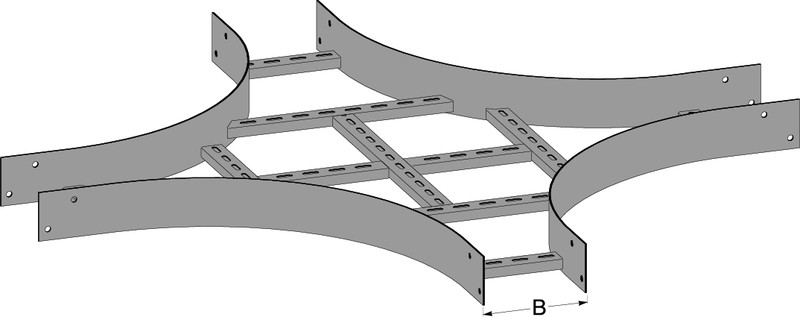

CROSS PIECE FZ MP-226Z
Product number
1352624
X-piece
X-avgrening til MP-FZ. Krever ikke ekstra skjøter.
Materiale: Varmforsinket 60 µm (maks miljøklasse C4)
Product details
Technical specifications
Type of side joistFlat profile
Type of rungPerforated profile
Suitable for cable ladder height56 mm
Suitable for cable ladder width400 mm
Cable ladder branch width400 mm
Inner radius490 mm
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
ColourZinc
RAL-number0
Product codes
SAPANL377
El number1352624
Product number1352624
GTIN/EAN7394333023335
Manufacturer part numberMP-226Z
Vendor material number1352624
Basic information
Package measurements (L x W x H)1350 x 1450 x 100 mm
Package volume195.75 l
Package weight10 kg
Base uniteach
Package units1 / 2
Usage quantity–
UNSPSC39131705
BrandELIS ELEKTRO
Country of OriginSE Sweden
Customs tariff code73089008
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A328.3
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
