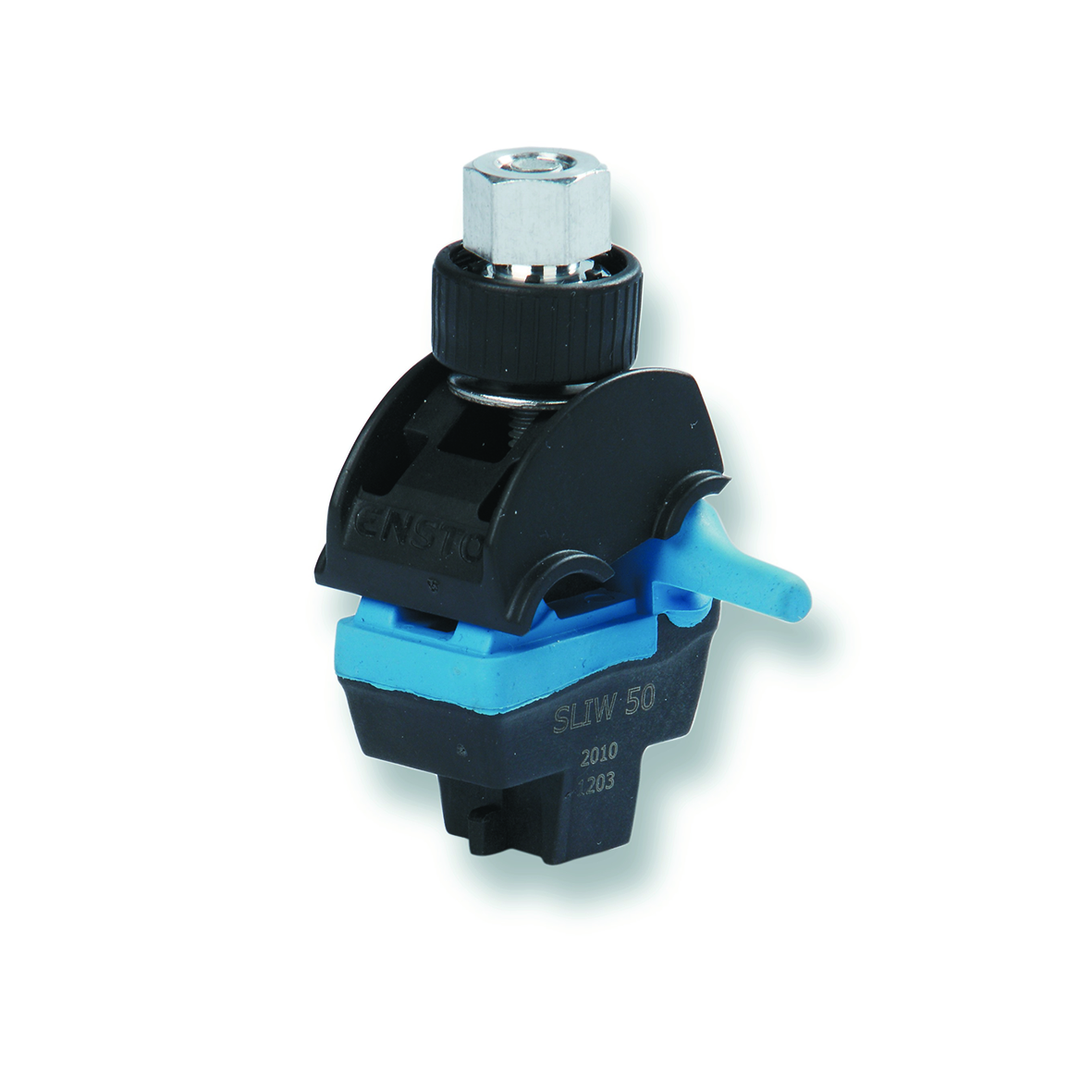

ISO KLEMME AL/CU SLIW50 10-50/1,5-10MM²
Product number
2871589
Iso klemme SLIW50 Al/Cu. Hovedleder Al/Cu 10-50 Avgrening Al/Cu 1,5-10.
SLIW50 Iso klemme Hovedleder Al/Cu 10-50 Avgrening Al/Cu 1,5-10. SLIW50 serien, vanntett ISO-klemme utviklet og testet iht. den nye og krevende CENELEC EN50483-4 standarden.
Product details
Technical specifications
Nominal cross section main conductor, SE10 ... 50 mm²
Nominal cross section main conductor, SM10 ... 50 mm²
Nominal cross section branch conductor, SE/RE1.5 ... 10 mm²
Nominal cross section branch conductor, SM/RM1.5 ... 10 mm²
Material main conductorAluminium/copper
Material branch conductorAluminium/copper
Terminal insulatedtrue
Clamping channel opening main conductorBoth sides open
Clamping channel opening branch conductorOne side open
Surface protectionTinned
Type of connectionInsulation piercing connector IPC
Type of connectionNot applicable
Nominal cross section branch# mm²
Nominal cross section transition# mm²
Product codes
SAPAQV529
PLC2871589
STK2871589
GTIN/EAN6438100303921
Manufacturer part numberSLIW50
Vendor material number2871589
Basic information
Package measurements (L x W x H)52 x 31 x 92 mm
Package volume0.148 l
Package weight0.113 kg
Base uniteach
Package units1 / 120 / 1080 / 6480
Usage quantity–
UNSPSC39121717
BrandENSTO
