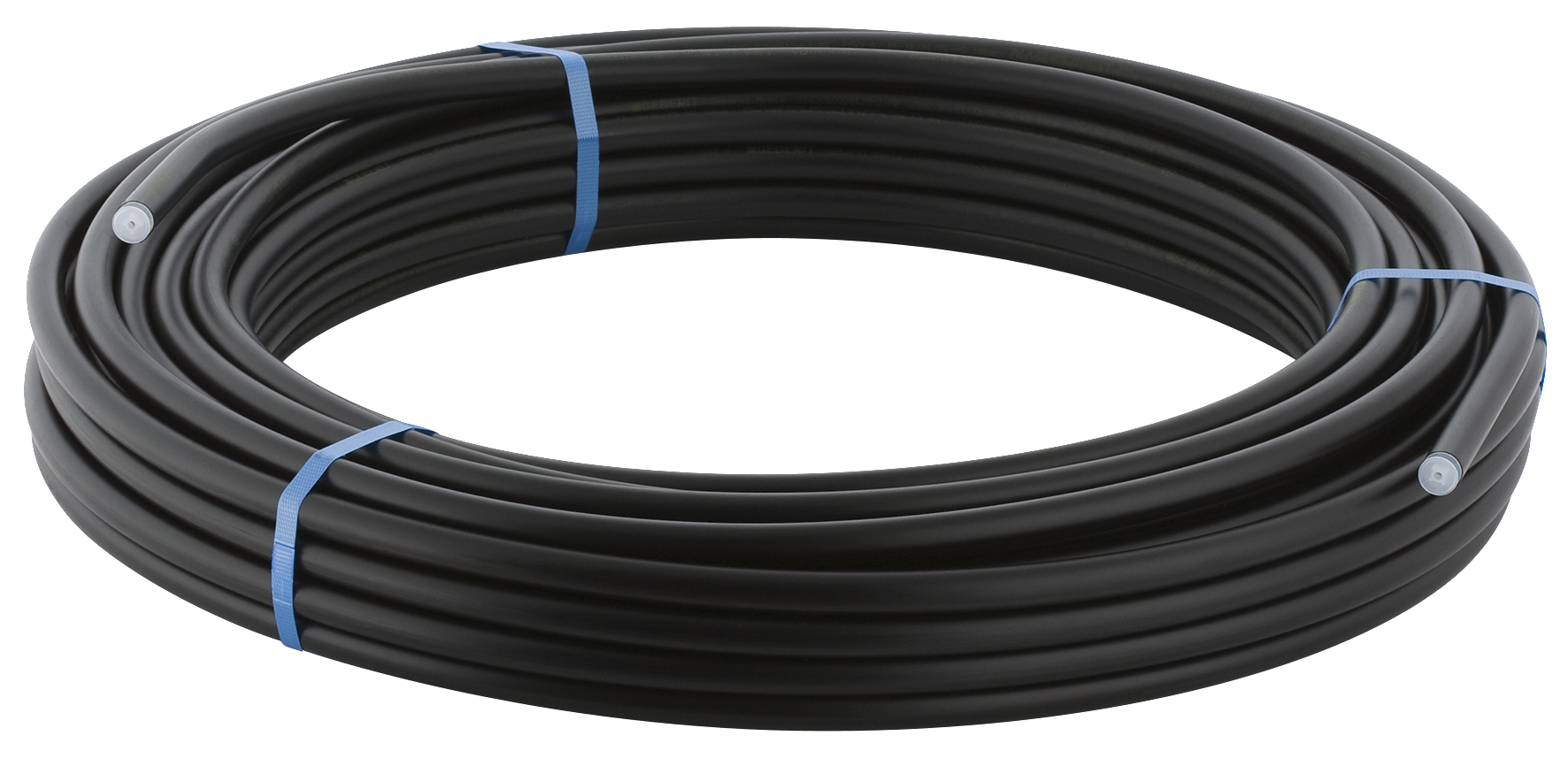

MEPLA RØR Ø 26 MM, RULLE Á 50 M M
Product number
2472026
MEPLA RØR Ø 26 MM, RULLE Á 50 M M
Product details
Technical specifications
Quality class inner layerPE-RT II
Material intermediate layerAluminium
Quality class intermediate layerOther
Quality class outer layerPE-RT II
Number of layers3
Glass-fibre reinforcedno
Diffusion-proofyes
Nominal diameterDN 20

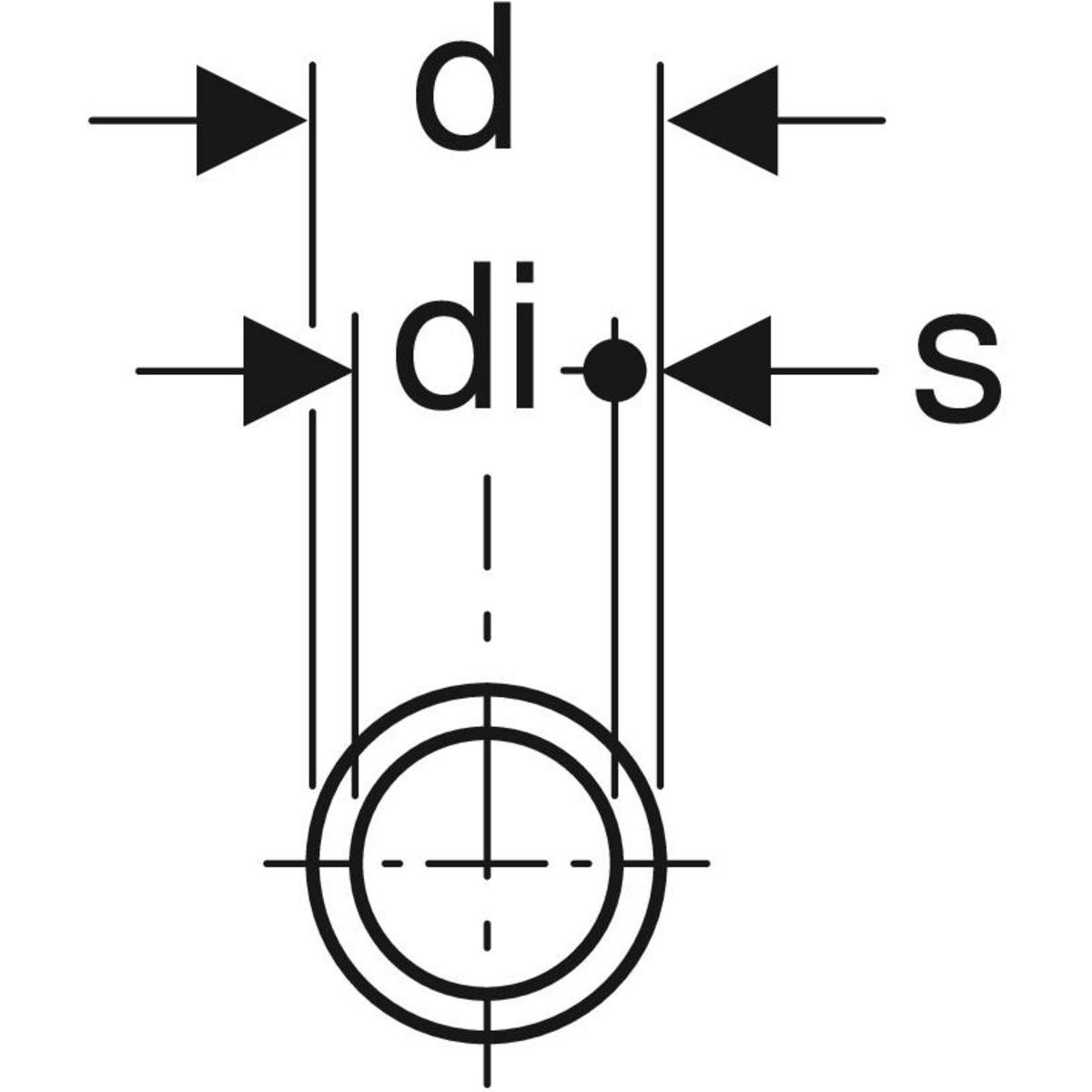

Outer pipe diameter26 mm
Wall thickness3 mm
System specificyes
Medium temperature (continuous)0 - 70 °C
Max. medium temperature (momentarily)80 °C
Max. operating pressure at max. medium temperature10 bar
Wall roughness0.007 mm
Product codes
SAPGDI623
HPAC2472026
Product number2472026
GTIN/EAN4025416042709
Manufacturer part number603.110.00.1
Vendor material number603.110.00.1
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.007 kg
Base unitm
Package units50
Usage quantity1
UNSPSC32000000
BrandGEBERIT
