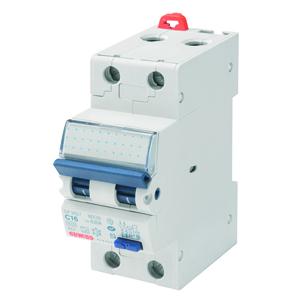

Jordfeilautomat mdc, b, 30ma, 15a, 2p, 10ka, 2 mod
Product number
1611899
Jordfeilautomat mdc, b, 30ma, 15a, 2p, 10ka, 2 mod
Jordfeilautomat mdc, b, 15a, 2p, 10ka, 30ma, 2 moduler, varig merking, gul fane ved jordfeil, kjøleribber
Product details
Technical specifications
Number of poles (total)2
Number of protected poles2
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current15 A
Rated fault current0.03 A
Mounting methodDIN rail
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity according to EN 6100910 kA
Rated short-circuit breaking capacity according to IEC 60947-210 kA
Rated short-circuit breaking capacity Icn according to EN 61009-110 kA
Disconnection characteristicUndelayed
Surge current capacity0.25 kA
Product codes
SAPDIG745
El number1611899
Product number1611899
GTIN/EAN8011564761490
Manufacturer part numberGW95332
Vendor material numberGW95332
Basic information
Package measurements (L x W x H)105 x 85 x 35 mm
Package volume0.312 l
Package weight0.24 kg
Base uniteach
Package units1 / 6
Usage quantity–
UNSPSC32000000
BrandGEWISS
Country of OriginPT Portugal
