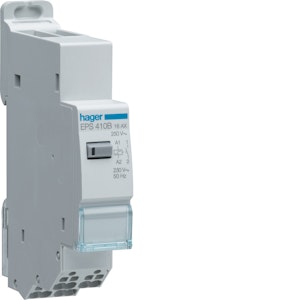

hager Fjernbryter 230v 16a 1s eps410b hager

FJERNBRYTER 230V 16A 1S EPS410B HAGER

Product number
1480186
FJERNBRYTER 230V 16A 1S
FJERNBRYTER 230V 16A 1 STK NO LYDLØST RELE Norm: EN60669-1, EN60669-2-1, EN60669-2-2, EN60669-2-3, Driftspenning 230V AC +/- 10 % 50/60Hz, Normal Åpen kontakt µ16A – 250V AC1, WAGO QuickConnect klemmer
Product codes
Basic information
Technical specifications
Documents (1)
SAPGBU897
PLC1480186
STK1480186
GTIN/EAN3250612369270
Manufacturer part numberEPS410B
Vendor material number1480186
Package measurements (L x W x H)60 x 18 x 83 mm
Package volume0.09 l
Package weight0.083 kg
Package units1
Usage quantity1
UNSPSC39121514
BrandHAGER
Built-in depth64 mm
Control voltage 1230 ... 230 V
Control voltage 20 ... 0 V
Frequency control voltage 150 ... 60 Hz
Frequency control voltage 250 ... 60 Hz
FunctionElectronic switch
Manual operation possibletrue
Max. incandescent lamp load1500 W
Max. load fluorescent lamp1200 VA
Max. load fluorescent lamp (Duo circuit)600 VA
Max. load fluorescent lamp (parallel compensated)300 VA
Max. switching current (cos phi = 0.6)16 A
Mounting methodDIN rail
Number of change-over contacts0
Number of contacts as change-over contact0
Number of contacts as normally closed contact0
Number of contacts as normally open contact1
Number of normally closed contacts0
Number of normally open contacts1
Rated switch current16 A
