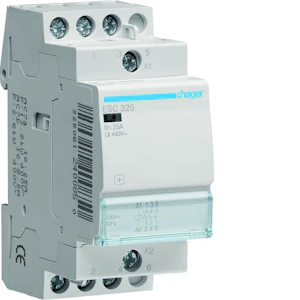

MODULÆRKONTAKTOR ESC325 HAGER
Product number
4114087
Modulær kontaktor, 2-mod, 3x25A, 230V AC
Norm: EN61095: Modulær kontaktor for montering på DIN skinne: Spolespenning 230V AC Maks last AC1 =25A / 4,6kW AC1 400V =25A / 13,8kW AC3-230V = 5,5A / 570 W , AC3-400V = 5,5A / 1,7kW, 2 Modul: 3-POL ( 3NO ): Indikerer stilling gjennom indikeringsvindu: Tilkobling lastklemmer 1mm2 - 10mm2 CU.
Product details
Technical specifications
Rated operating voltage400 - 400 V
Rated operation current25 A
Rated excitation voltage230 - 230 V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact3
Number of contacts as normally closed contact0
Max. incandescent lamp load1900 W
Max. load fluorescent lamp950 VA
Max. load fluorescent lamp (Duo circuit)1990 VA
Max. load fluorescent lamp (parallel compensated)810 VA
Slider for hand switchno
Built-in depth60 mm
Additional equipment possibleyes
With day/night functionno
Product codes
SAPGCL628
El number4114087
Product number4114087
GTIN/EAN3250612400850
Manufacturer part numberESC325
Vendor material number4114087
Basic information
Package measurements (L x W x H)64 x 53 x 88 mm
Package volume0.298 l
Package weight0.334 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121514
BrandHAGER
Country of OriginFR France
Customs tariff code85364900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.3272
GWP uniteach
Data source for GWPEPD
