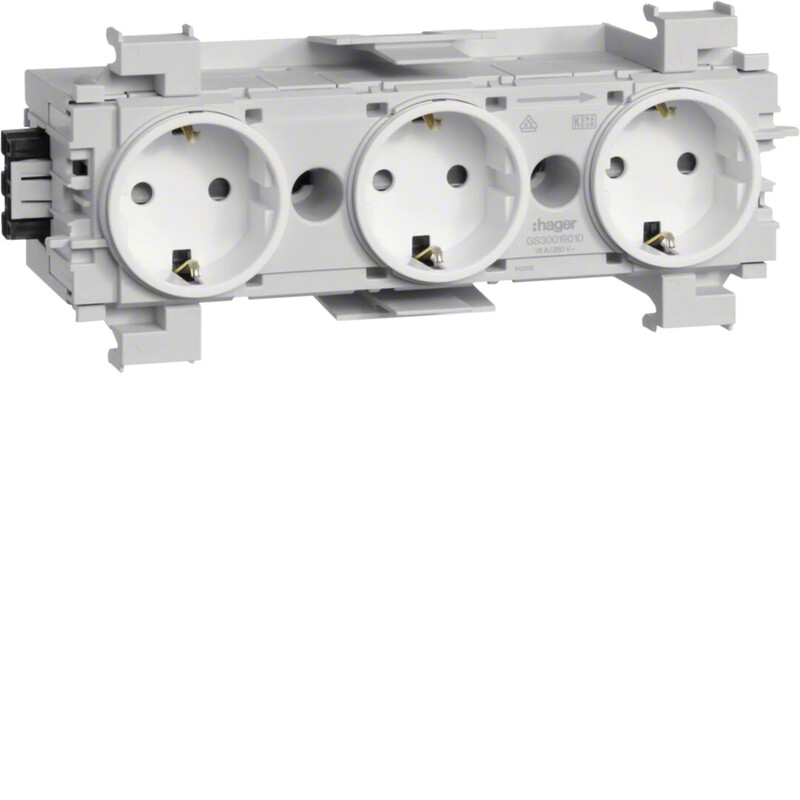

TRUNKING OL TEHALIT.ECOLINE GS3001 3F WA-WI WHITE
Product number
1236086
3-veis stikkontakter, med berøringsbeskyttelse, halogenfrie, for hurtigkobling med Wago-Winsta koblinger. For mating mellom uttak/arbeidsplasser finnes prefabrikerte standardkabler G4* i varierende lengder, Hurtigkobling på hver side av stikk for kabler opp til 2,5mm2. Wago-Winsta koblinger i hver ende for enkel sammenkobling. Passer alle hager installasjonskanaler - er i halogenfri utførelse. Stikkontakt med berøringsbeskyttelse
Product details
Technical specifications
ModelSocket outlet with protective contact CEE 7/3 (type F)
Protective contactEarthing clips
With signal lampno
Number of modules (module system)3
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typePush-in clamp
With hinged lidno
With enhanced contact protectionyes
Label space/information surfaceyes
ColourWhite
RAL-number (similar)9016
Metallic colourno
Transparentno
Product codes
SAPCLW963
El number1236086
Product number1236086
GTIN/EAN4012740993739
Manufacturer part numberGS30019016
Vendor material numberGS30019016
Basic information
Package measurements (L x W x H)197 x 82 x 66 mm
Package volume1.12 l
Package weight0.28 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC39121302
BrandHAGER
Country of OriginDE Germany
Customs tariff code85366900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.0168
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
