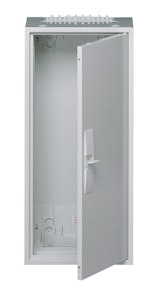

VEGGSKAP 1250X550X205MM IP44 FP82SN2 HAGER
Product number
2471626
VEGGSKAP 1250x550x205mm IP44
VEGGSKAP 1250x550x205mm IP44 NORM: EN60439-1 og 3: Tomt vegg med dør i metall :Farge, RAL 1090: Skapene kan monteres innfelt eller påvegg: Skapene er forberdt for montasje av innvendig montasjesystem Univers N: : IP44: Isolasjonsklasse K. II, dobbeltisolert: Merkedata 400V , Merkestøm maks 400A: .Dybde 205mm, Høyde 500 til 1950mm , bredde 300 til 130mm: Leveres med flenser med innstøpte membranippler.
Product details
Technical specifications
Mounting methodOther
Type of coveringCover
Cover modelClosed
Type of doorSingle
Transparent cover/doorno
With lockno
Nominal current (In)250 A
Height1250 mm
Width550 mm
Depth205 mm
Built-in depth205 mm
Inner depth143 mm
Material plate thickness cabinet1 mm
Material plate thickness door/cover1 mm
ColourWhite
Product codes
SAPGBU916
El number2471626
Product number2471626
GTIN/EAN3250612669202
Manufacturer part numberFP82SN2
Vendor material number2471626
Basic information
Package measurements (L x W x H)205 x 550 x 1250 mm
Package volume140.938 l
Package weight20.6 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121301
BrandHAGER
Country of OriginDE Germany
Customs tariff code85381000
Documents (3)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A313.9952
GWP uniteach
Data source for GWPEPD
