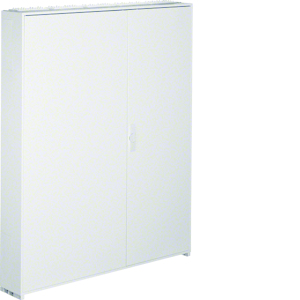

VEGGSKAP 1550X1300X205MM IP44 FP05SN2 HAGER
Product number
2471639
VEGGSKAP 1550x1300x205mm IP44
VEGGSKAP 1550x1300x205mm IP44 NORM: EN60439-1 og 3: Tomt vegg med dør i metall :Farge, RAL 1090: Skapene kan monteres innfelt eller påvegg: Skapene er forberdt for montasje av innvendig montasjesystem Univers N: : IP44: Isolasjonsklasse K. II, dobbeltisolert: Merkedata 400V , Merkestøm maks 400A: .Dybde 205mm, Høyde 500 til 1950mm , bredde 300 til 130mm: Leveres med flenser med innstøpte membranippler.
Product details
Technical specifications
Mounting methodOther
Type of coveringCover
Cover modelClosed
Type of doorDouble
Transparent cover/doorno
With lockno
Nominal current (In)400 A
Height1550 mm
Width1300 mm
Depth205 mm
Built-in depth205 mm
Inner depth143 mm
Material plate thickness cabinet1 mm
Material plate thickness door/cover1 mm
ColourWhite
Product codes
SAPGBU929
El number2471639
Product number2471639
GTIN/EAN3250612670161
Manufacturer part numberFP05SN2
Vendor material number2471639
Basic information
Package measurements (L x W x H)205 x 1300 x 1550 mm
Package volume413.075 l
Package weight50.1 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121301
BrandHAGER
Country of OriginDE Germany
Customs tariff code85381000
Documents (3)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A334.0369
GWP uniteach
Data source for GWPEPD
