HELACON INNSTIKKLEMME HCRN-2 ÅPNINGSBAR KOBL.KLEMME
Product number
1243156
HelaCon - HCRN-2 Universelle åpningsbare koblingsklemmer med for alle ledningstyper
HelaCon Innstikklemme HCRN-2 Universelle åpningsbare koblingsklemmer med for alle ledningstyper
Product details
Technical specifications
Number of clamp positions (installation side)2
Number of clamp positions (device side)2
Cable diameter0.2 - 4 mm

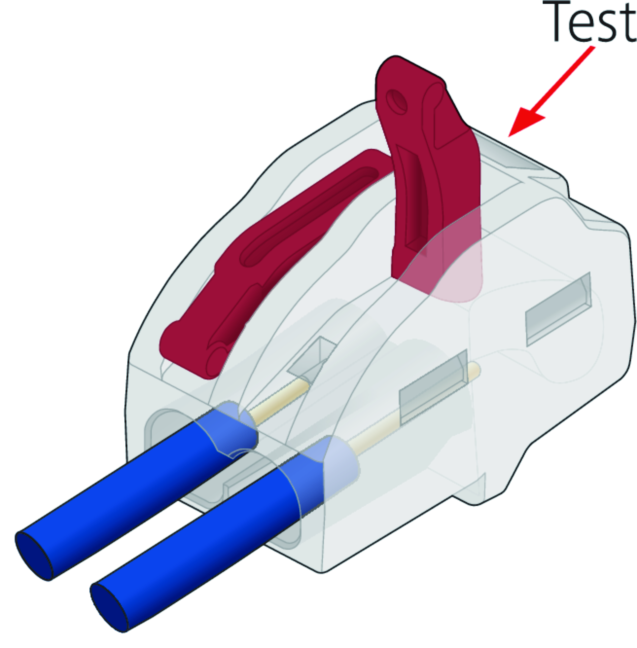

Type of locking/unlockingLever
ColourColourless
Transparentyes
Nominal voltage450 V
Nominal current32 A
Suitable for solid conductorsyes
Suitable for flexible conductorsyes
Suitable for multi-wire conductorsyes
Conductor cross section flexible (fine-strand) with cable end sleeve0.2 - 4 mm²
Conductor cross section solid (solid, stranded)0.2-0.4 mm²
Min. AWG-size24
Max. AWG-size12
Product codes
SAPCNV627
El number1243156
Product number1243156
GTIN/EAN4031026657868
Manufacturer part number148-90059
Vendor material number148-90059
Basic information
Package measurements (L x W x H)50 x 100 x 75 mm
Package volume0.375 l
Package weight0.002 kg
Base uniteach
Package units80
Usage quantity–
UNSPSC39121400
BrandHELLERMANN
Country of OriginCN China
Customs tariff code85369010
