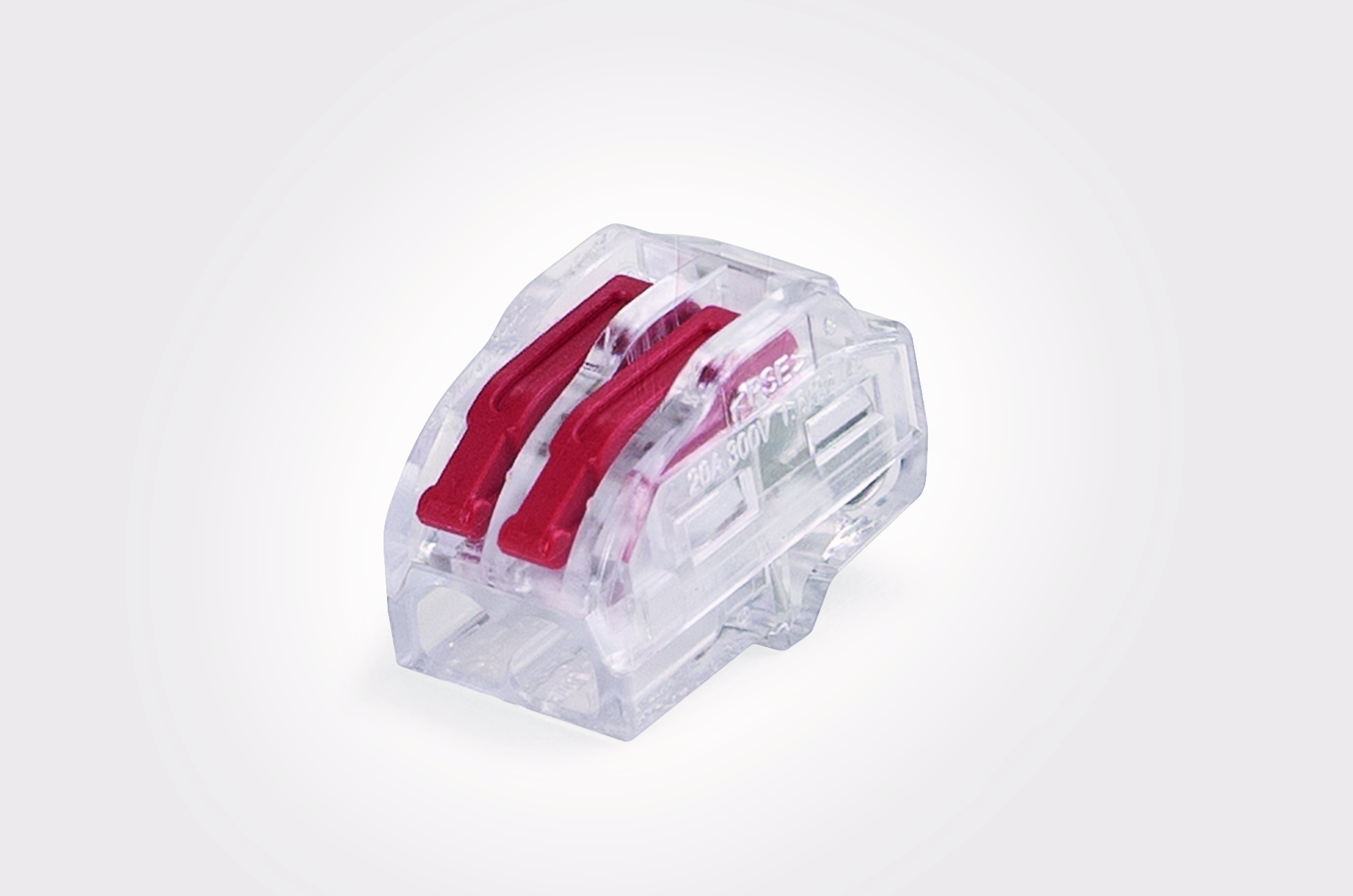

HELACON INNSTIKKLEMME HCRN-2-Blister (10 klemmer)
Product number
1243159

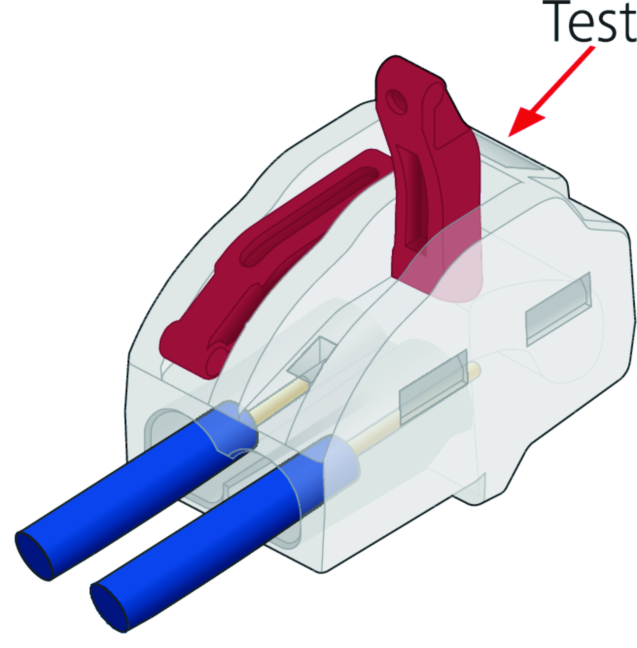

HelaCon Innstikklemme HCRN-2-Blister Universelle åpningsbare koblingsklemmer med for alle ledningstyper
Product details
Technical specifications
Number of clamp positions (installation side)2
Number of clamp positions (device side)2
Cable diameter0.2 - 4 mm
Type of locking/unlockingLever
ColourColourless
Transparentyes
Nominal voltage450 V
Nominal current32 A
Suitable for solid conductorsyes
Suitable for flexible conductorsyes
Suitable for multi-wire conductorsyes
Conductor cross section flexible (fine-strand) with cable end sleeve0.2 - 4 mm²
Conductor cross section solid (solid, stranded)0.2-0.4 mm²
Min. AWG-size24
Max. AWG-size12
Product codes
SAPDAR214
El number1243159
Product number1243159
GTIN/EAN4031026657899
Manufacturer part number148-90062
Vendor material number148-90062
NOBB60132845
Basic information
Package measurements (L x W x H)12 x 20.5 x 14 mm
Package volume0.003 l
Package weight0.002 kg
Base unitpk
Package units1 / 180 / 3240
Usage quantity–
UNSPSC32000000
BrandHELLERMANN
Country of OriginCN China
Customs tariff code85369010
