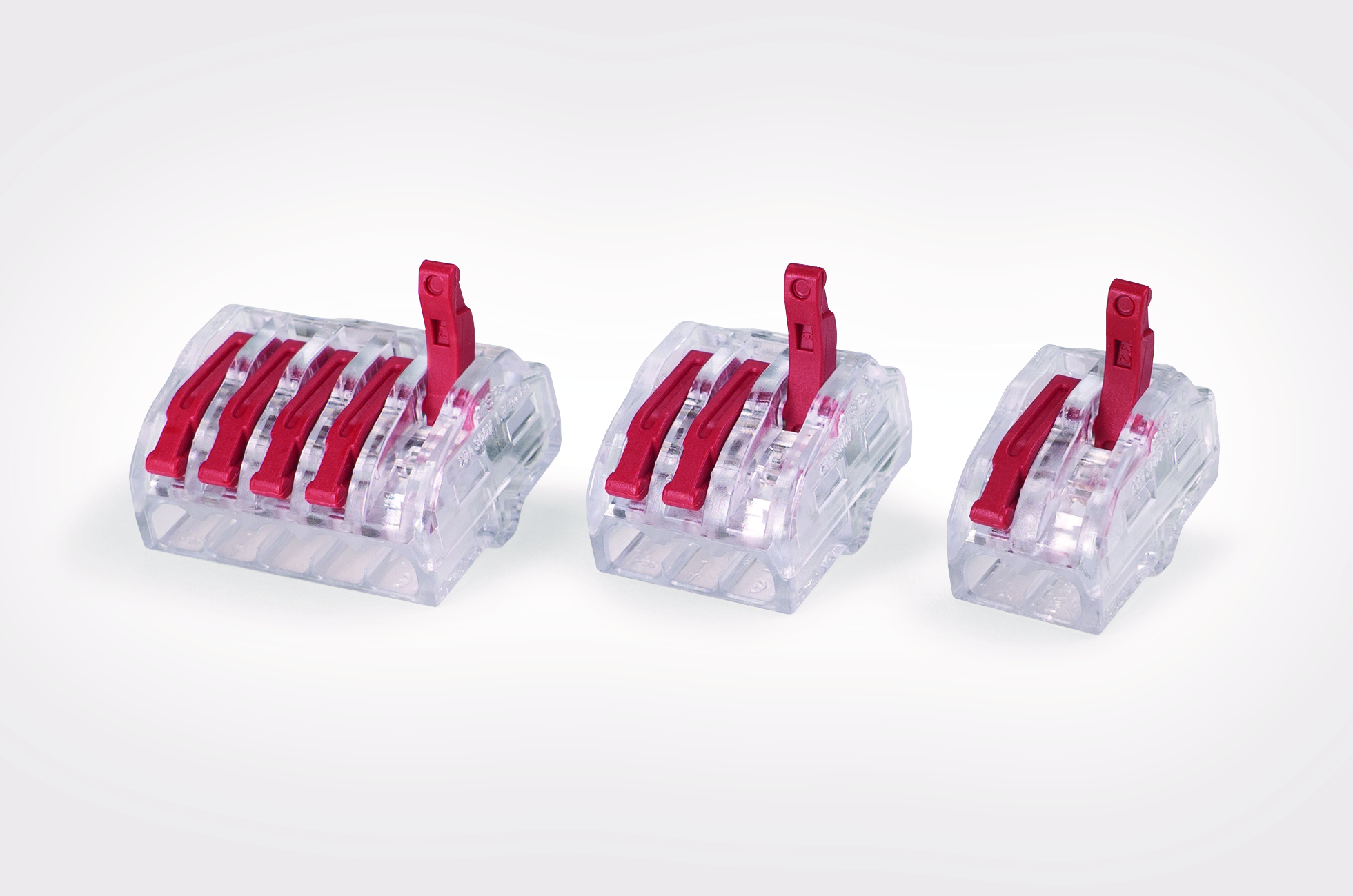

HELACON INNSTIKKLEMME HCRN-3-Blister (8 klemmer)
Product number
1243160
HelaCon Innstikklemme HCRN-3-Blister. Universelle åpningsbare koblingsklemmer med for alle ledningstyper
Product details
Technical specifications
Number of clamp positions (installation side)3
Type of locking/unlockingLever
ColourColourless
Transparentyes
Nominal voltage450 V
Nominal current32 A
Suitable for solid conductorsyes
Suitable for flexible conductorsyes
Suitable for multi-wire conductorsyes
Conductor cross section solid (solid, stranded)0.2-0.4 mm²
Product codes
SAPDAR215
El number1243160
Product number1243160
GTIN/EAN4031026657905
Manufacturer part number148-90063
Vendor material number148-90063
NOBB60133003
Basic information
Package measurements (L x W x H)17 x 20.5 x 14 mm
Package volume0.005 l
Package weight0.002 kg
Base unitpk
Package units1 / 180 / 3240
Usage quantity–
UNSPSC32000000
BrandHELLERMANN
Country of OriginCN China
Customs tariff code85369010
