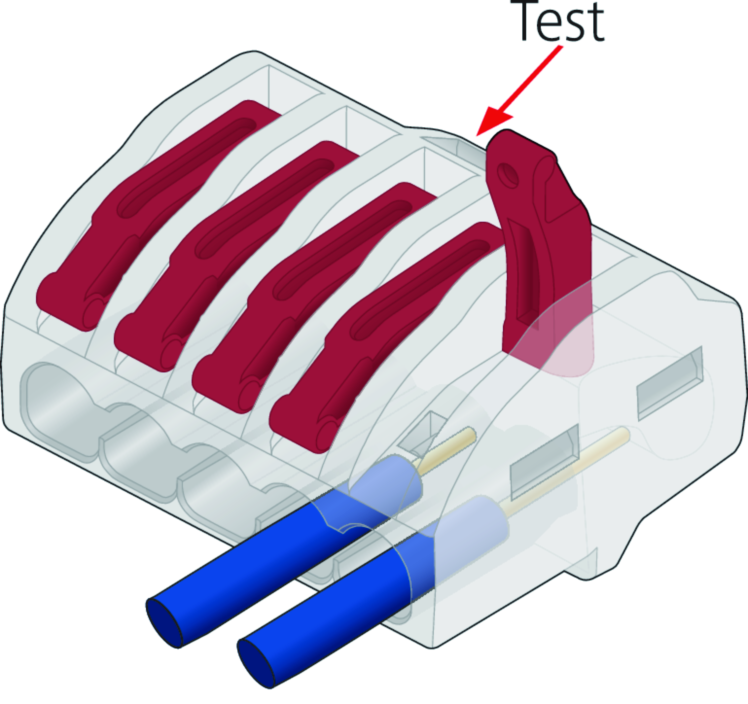

HELACON INNSTIKKLEMME HCRN-5 ÅPNINGSBAR KOBL.KLEMME
Product number
1243158
HelaCon Innstikklemme HCRN-5 Universelle åpningsbare koblingsklemmer med for alle ledningstyper
HelaCon Innstikklemme HCRN-5 Universelle åpningsbare koblingsklemmer med for alle ledningstyper
Product details
Technical specifications
Number of clamp positions (installation side)5
Number of clamp positions (device side)5
Cable diameter2 - 4 mm
Type of locking/unlockingLever
ColourColourless
Transparentyes
Nominal voltage450 V
Nominal current32 A
Suitable for solid conductorsyes
Suitable for flexible conductorsyes
Suitable for multi-wire conductorsyes
Conductor cross section flexible (fine-strand) with cable end sleeve0.2 - 4 mm²
Conductor cross section solid (solid, stranded)0.2-0.4 mm²
Min. AWG-size24
Max. AWG-size12
Product codes
SAPCNV628
El number1243158
Product number1243158
GTIN/EAN4031026657882
Manufacturer part number148-90061
Vendor material number148-90061
Basic information
Package measurements (L x W x H)50 x 100 x 75 mm
Package volume0.375 l
Package weight0.005 kg
Base uniteach
Package units30
Usage quantity–
UNSPSC39121400
BrandHELLERMANN
Country of OriginCN China
Customs tariff code85369010
