MODULAR LUMINAIRE SKY IP40 3800LM 30W 830/840
Product number
3207081
LED-Panel Sky OP 830/840 DIM Linect, 3750lm/3800lm, 120° , 30W. Fasedimbar driver og Linect-tilkobl.

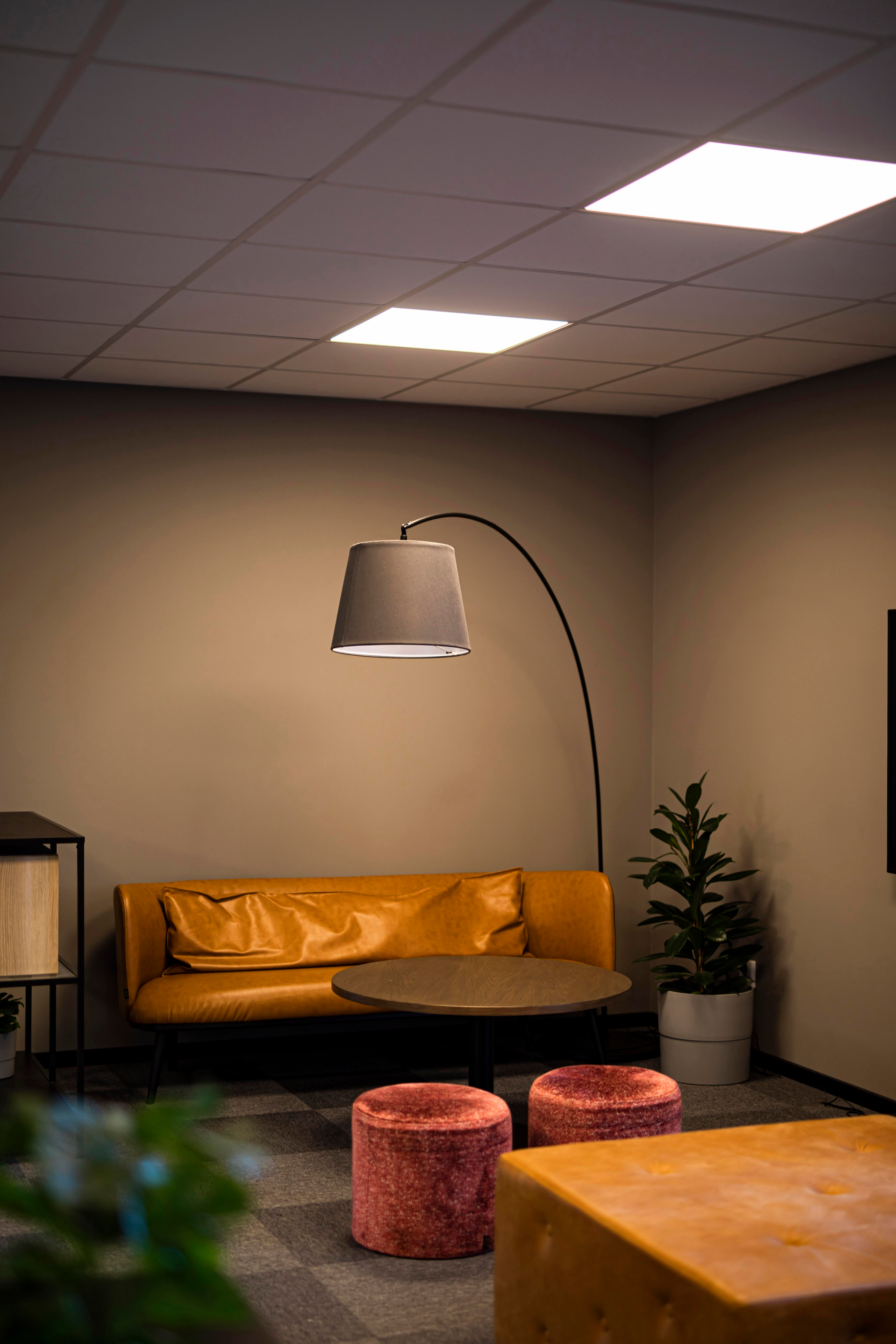

LED-panel med opal blendingsbeskyttelse for korridorer og fellesrom. Monteres i himling og kan suppleres med påbyggingsramme for utenpåliggende montering. Valgbar fargetemperatur via DIP-switch. Komplett med driver for fasedimming eller DALI-2. Kan fås med Q-Box Mini eller Linect. FDIM-versjon leveres med 2 m forhåndsmontert lampettledning og fås i 5-pakning for rask installasjon ved større prosjekter.
Product details
Technical specifications
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, opal
Type of gridNone
Voltage typeAC
Product codes
SAPCOP668
El number3207081
Product number3207081
GTIN/EAN7392971143699
Manufacturer part number4124
Vendor material number3207081
Basic information
Package measurements (L x W x H)730 x 650 x 52 mm
Package volume24.674 l
Package weight2.058 kg
Base uniteach
Package units1 / 5
Usage quantity–
UNSPSC39111521
BrandHIDEALITE
Country of OriginCN China
Customs tariff code94051000
Sustainability info
Documents (1)
Environmental declaration
