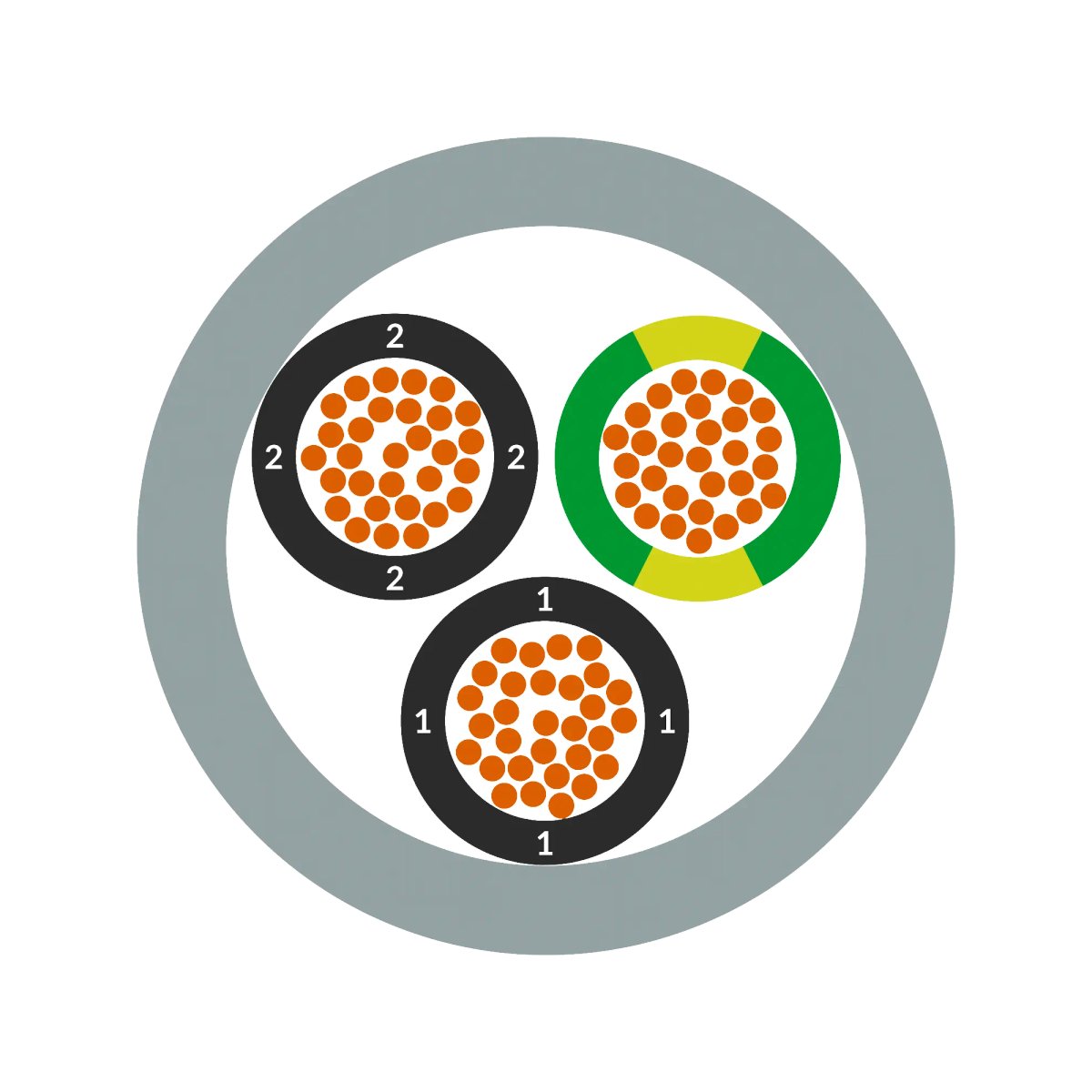

ØLFLEX® CLASSIC 130 H 3G1,5
Product number
1070948
ØLFLEX® CLASSIC 130 H 3G1,5
Halogenfri uskjermet styrekabel for industriellt innendørs bruk, uten indre kappe.
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceBare
AWG size16
Nominal cross section conductor1.5 mm²
Conductor categoryClass 5 = flexible
Conductor resistance at 20 °C13.3 Ohm/km
Number of cores3
Screen over stranding elementNone
Stranding elementNo
Screen over strandingNone
Material core insulationOther
Specification core insulationOther
Core identification according to HD 308 S2no
Core identificationNumbers
With protective conductoryes
Product codes
SAPCEL204
El number1070948
Product number1070948
GTIN/EAN4044773747065
Manufacturer part number1123107
Vendor material number1123107
Basic information
Package measurements (L x W x H)1000 x 6.8 x 6.8 mm
Package volume0.046 l
Package weight0.088 kg
Base unitm
Package units1 / 500
Usage quantity–
UNSPSC26121500
BrandLAPP KABEL
Country of OriginFR France
Customs tariff code85444921
