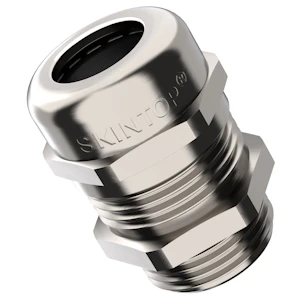

SKINTOP MS-M12X1,5 53112000 LAPP KABEL
Product number
1247861
SKINTOP® MS-M 12x1,5
SKINTOP®MS-M Metriske gjenger- IP68- 5bar - med innebygget strekkavlastning- i forniklet messing - -30 til +100ºC
Product details
Technical specifications
Thread typeMetric
Nominal thread size metric/PG12
Nominal thread size inch/gas pipe threadOther
Pitch thread1.5 mm
Thread length6.5 mm
Wrench width16 mm
Hexagon angular dimension17.6 mm
Suitable for cable diameter3 - 7 mm
MaterialMetal
Material qualityBrass
Surface protectionNickel-plated
Halogen freeno
Glass-fibre reinforcedno
Degree of protection (IP)IP68
Shock resistantyes
Product codes
SAPGBR752
El number1247861
Product number1247861
GTIN/EAN4044773174274
Manufacturer part number53112000
Vendor material number53112000
Basic information
Package measurements (L x W x H)20 x 20 x 20 mm
Package volume0.008 l
Package weight0.17 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121311
BrandLAPP KABEL
Country of OriginDE Germany
Customs tariff code74199900
Documents (2)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.1376
GWP uniteach
Data source for GWPEandoX
