SKINTOP MS-M50X1,5 53112000 LAPP KABEL
Product number
1247867

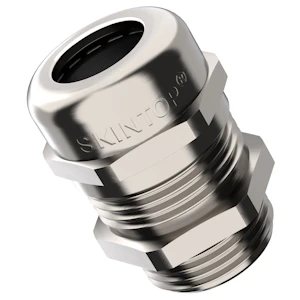

SKINTOP® MS-M 50x1,5
SKINTOP®MS-M Metriske gjenger- IP68- 5bar - med innebygget strekkavlastning- i forniklet messing - -30 til +100ºC
Product details
Technical specifications
Thread typeMetric
Nominal thread size metric/PG50
Nominal thread size inch/gas pipe threadOther
Pitch thread1.5 mm
Thread length10 mm
Wrench width54 mm
Hexagon angular dimension59 mm
Suitable for cable diameter27-35 mm
MaterialMetal
Material qualityBrass
Surface protectionNickel-plated
Halogen freeno
Glass-fibre reinforcedno
Degree of protection (IP)IP68
Shock resistantyes
Product codes
SAPGBR744
El number1247867
Product number1247867
GTIN/EAN4044773173239
Manufacturer part number53112060
Vendor material number53112060
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight231 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121311
BrandLAPP KABEL
Country of OriginDE Germany
Customs tariff code74199900
