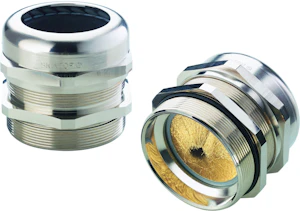

SKINTOP MS-SC-BRUSH M63 53112680 LAPP
Product number
1249633
SKINTOP® MS - M BRUSH 63X1,5
SKINTOP®MS-M BRUSH-EMC NIPPEL-Metriske gjenger-IP68-5 bar-med innebygget strekkavlastning-forniklet messing - med O-ring - Neoprene pakning - -30 til + 100 ºC
Product details
Technical specifications
Connection type to housingScrewing
Thread typeMetric
Nominal thread size metric/PG63
Nominal thread size inch/gas pipe threadOther
Pitch thread1.5 mm
Thread length15 mm
Wrench width67 mm
Hexagon angular dimension73.5 mm
Suitable for cable diameter34 - 45 mm
MaterialMetal
Material qualityBrass
Surface protectionNickel-plated
Halogen freeno
Glass-fibre reinforcedno
Degree of protection (IP)IP68
Product codes
SAPGBF237
El number1249633
Product number1249633
GTIN/EAN4044773745849
Manufacturer part number53112680
Vendor material number53112680
Basic information
Package measurements (L x W x H)0.2 x 0.25 x 0.05 mm
Package volume2.5 l
Package weight0.46 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121312
BrandLAPP KABEL
Country of OriginDE Germany
Customs tariff code74199900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A31.9755
GWP uniteach
Data source for GWPEandoX
