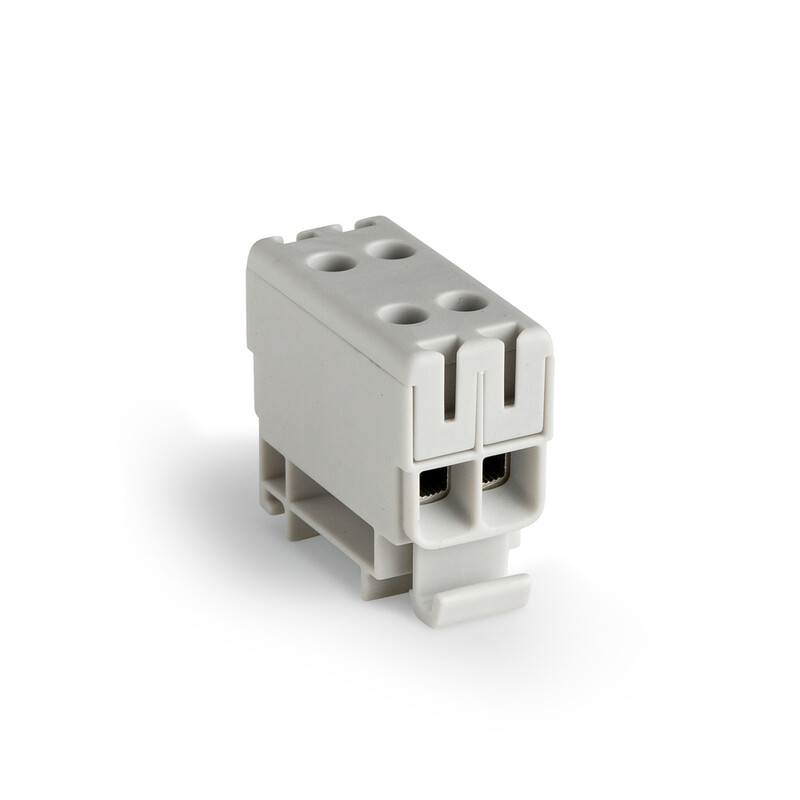

TERMINAL BLOCK CLAMPO PRO GREY, AL/CU 16 mm2
Product number
1203684
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve10-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5-10 mm²
Connectable conductor cross section solid-core1.5-16 mm²
Connectable conductor cross section multi-wired1.5-16 mm²
Rated current In164 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level4
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-80 °C
Explosion-tested version 'Ex e'no
ColourGrey
Product codes
SAPDAY783
El number1203684
Product number1203684
GTIN/EAN6438100432256
Manufacturer part numberKE65
Vendor material numberKE65
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.2 l
Package weight0.05 kg
Base uniteach
Package units1 / 30 / 3150
Usage quantity–
UNSPSC39121421
BrandLEGRAND NORGE
Country of OriginEE Estonia
Customs tariff code85369010
Documents (3)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.436
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
