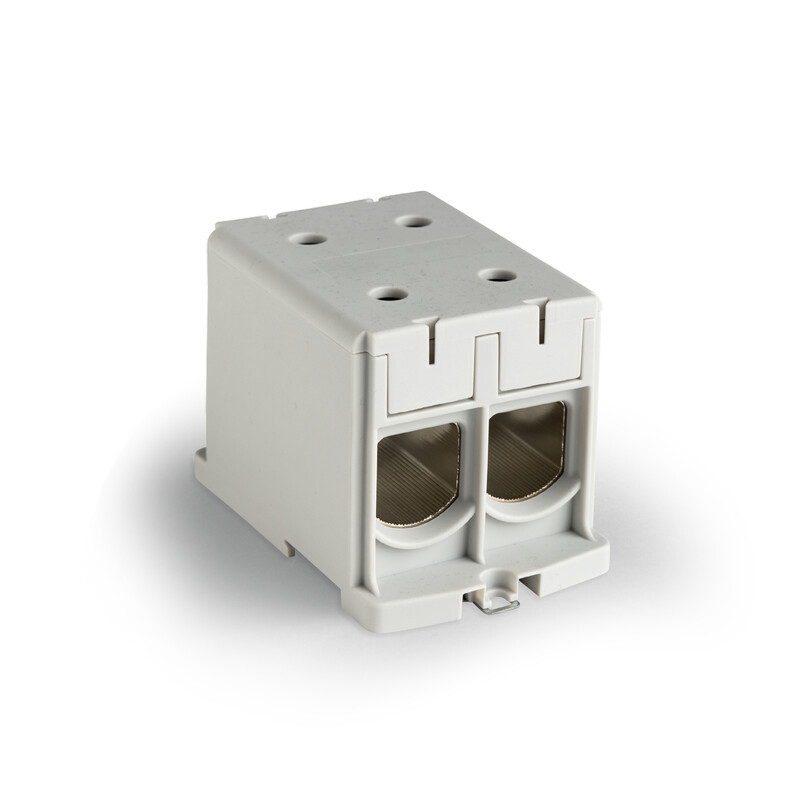

TAPPING CONNECTOR CLAMPO PRO GREY, AL/CU 95-300 mm2
Product number
1203687
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve95-240 mm²
Connectable conductor cross section fine-strand with cable end sleeve95-240 mm²
Connectable conductor cross section multi-wired95-300 mm²
Rated current In1040 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level4
Mounting methodDirect mounting
Material insulation bodyThermoplastic
Operating temperature-5-80 °C
Width78 mm
Height81 mm
Depth130 mm
Product codes
SAPDAY786
El number1203687
Product number1203687
GTIN/EAN6438100432263
Manufacturer part numberKE70
Vendor material numberKE70
Basic information
Package measurements (L x W x H)130 x 81 x 78 mm
Package volume0.985 l
Package weight0.727 kg
Base uniteach
Package units1 / 30 / 960
Usage quantity–
UNSPSC39121421
BrandLEGRAND NORGE
Country of OriginEE Estonia
Customs tariff code85369010
Documents (3)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A39.9756
GWP uniteach
Data source for GWPEPD
Documents (1)
Environmental declaration
