malthe winje El aut./ jordfeil, b, 2p, 30ma gw95 232b

EL AUT./ JORDFEIL, B, 2P, 30MA GW95 232B

Product number
1612736
JORDFEILAUT, B, 32A, 2P, 30mA

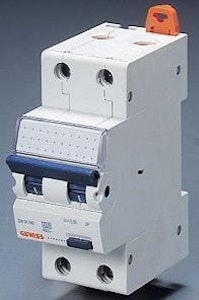

JORDFEILAUTOMAT MDC, B, 30mA, 32A, 2P, 10kA, 2 MOD JORDFEILAUTOMAT MDC, B, 32A, 2P, 10KA, 30mA, 2 MODULER, VARIG MERKING, GUL FANE VED JORDFEIL, KJØLERIBBER
Product codes
Basic information
Technical specifications
Documents (3)
SAPGBT939
PLC1612736
STK1612736
GTIN/EAN8011564299269
Manufacturer part numberGW95330
Vendor material number1612736
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight252.175 kg
Package units1
Usage quantity1
UNSPSC39121614
BrandMALTHE WINJE
Anti-nuisance tripping versionfalse
Built-in depth72 mm
Concurrently switching neutral conductorfalse
Current limiting class3
Degree of protection (IP)IP20
Frequency50 Hz
Leakage current typeA
Number of poles (total)2
Number of protected poles2
Over voltage category3
Pollution degree2
Rated current32 A
Rated fault current0.03 A
Rated short-circuit breaking capacity according to IEC 60947-210 kA
Rated voltage230 V
Release characteristicB
Suitable for flush-mounted installationfalse
Surge current capacity0.25 kA
Voltage typeAC
Width in number of modular spacings2
