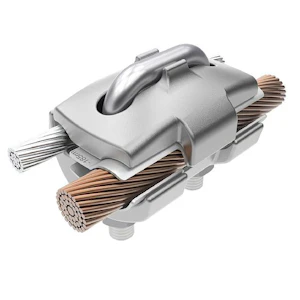

ALCU-AVGR.KL. 95-240/70-185 332235235 PFISTERER
Product number
2874113
AlCu avgreningsklemme
Materiale: Klemmekropp: korrosjonsbestandig, høyverdig Al-legering AlMgSi med innlagt Cupalblikk for Cu-overgang Bøyle: stål 8.8 varmgalvanisert Muttere: stål 8.8 varmgalvanisert Spennskiver: kuleplattert
Product details
Technical specifications
Nominal cross section main conductor, SE95 ... 240 mm²
Nominal cross section main conductor, SM95 ... 240 mm²
Nominal cross section branch conductor, SE/RE70 ... 185 mm²
Nominal cross section branch conductor, SM/RM70 ... 185 mm²
Material main conductorAluminium
Material branch conductorCopper
Terminal insulatedfalse
Clamping channel opening main conductorBoth sides open
Clamping channel opening branch conductorBoth sides open
Surface protectionBare
Type of connectionScrewed connection
Nominal cross section transition# mm²
Product codes
SAPGAU011
PLC2874113
STK2874113
GTIN/EAN7070682005825
Manufacturer part number332235235
Vendor material number332235235
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.3 l
Package weight0.5 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC39121409
BrandMAXETA
