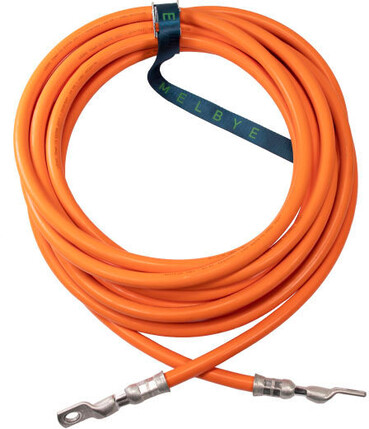

Jordlisse 120mm² 8,0 meter med kabelsko
Product number
2879118
Jordlisse 120mm² 8,0 meter med kabelsko på begge ender - halogenfri
Alle typer jordlisser fra Melbye er produsert i henhold til EN-61138
Jordlissene er halogenfrie.
Følgende merkeverdier gjelder for jordingsapparatets lisser
Tverrsnitt mm2 25 35 50 70 95 120
Merkekorttidsstrøm Ik1/1 sek 5 7 10 14 19 24
Merkekorttidsstrøm Ik1/0,5 sek 7 10 14 20 27 34
Verdiene er oppgitt i kA
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceOther
Nominal cross section conductor120 mm²
Conductor categoryClass 5 = flexible
Shape of conductorRound
Braidedno
Outer diameter approximate19 mm
Cable width approximate19 mm
Cable height approximate19 mm
Length8000 mm
Insulatedyes
With connecting lugsno
Connection lugs drilledyes
With cable lugsyes
Hole diameter connection13 mm
Product codes
SAPDKB321
El number2879118
Product number2879118
GTIN/EAN7070701031866
Manufacturer part number2879118
Vendor material number2879118
Basic information
Package measurements (L x W x H)8000 x 20 x 20 mm
Package volume3.2 l
Package weight9.662 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandMELBYE
Country of OriginDE Germany
Customs tariff code85441100
