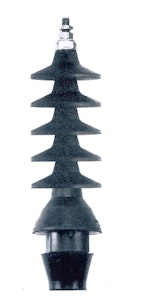

PLUG-IN ISOLATOR UTE 12/24KV FMCO 250A
Product number
1165335
Utendørs plugg in isolator
Utstyr til bruk på berøringssikre albue- og rettkontakter. UTENDØRS PLUGG IN ISOLATOR 24 KV-A 1 STK PR. PKN. FMCO-250
Alternative product1132653
Product codes
Basic information
Technical specifications
Documents (1)
| SAP | GBU846 |
|---|---|
| PLC | 1165335 |
| STK | 1165335 |
| GTIN/EAN | 7070701087023 |
| Manufacturer part number | 1165335 |
| Vendor material number | 1165335 |
| Package measurements (L x W x H) | 460 x 170 x 140 mm |
| Package volume | 10.948 l |
| Package weight | 2.58 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 26121630 |
| Brand | MELBYE |
| Connection type conductor | Screw connection |
| Height | 122 mm |
| Length | 445 mm |
| Nominal cross section | 400 ... 630 mm² |
| Nominal current according to EN 50180/EN 50181 | A (250 A) |
| Rated voltage U0/U (Um) | 12/20 (24) kV |
| Screened | false |
| Suitable for indoor use | true |
| Suitable for outdoor use | true |
| Type of plug termination | Straight |
| Width | 122 mm |
| With cable lug | false |
