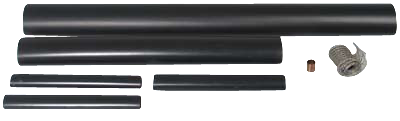

SKJØT 1KV PLASTKABEL 3X16-50MM² SSM-3 3X16-50
Product number
1166603
Krympeskjøt 3X16-50mm² SSM-3
Skjøt i h.t. Ref.pub.nr.5 jak(2/89)
Halogenfri
Settene inneholder: Ytterslange, mellomhylse, 3 stk. fasehylser, smergelpapir, fortinnet kobbernett,
renseserviett og bruksanvisning.
For plastisolert kabel, som f.eks.: PFSP, TFSP
Product details
Technical specifications
Rated voltage U0/U (Um)0.6/1 (1.2) kV
ModelHeat-shrink
Insulating materialPlastic
For connection of paper- with plastic insulated cablesno
Number of conductors3
Nominal cross section conductor16 - 50 mm²
Mining sector approvalno
With concentric shieldingyes
Suitable forOther
Connection accessories includedNone
Halogen freeyes
Product codes
SAPGAF075
El number1166603
Product number1166603
GTIN/EAN7070701008073
Manufacturer part number11 666 03
Vendor material number1166603
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.62 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC26121630
BrandMELBYE
Country of OriginCN China
Customs tariff code85472000
