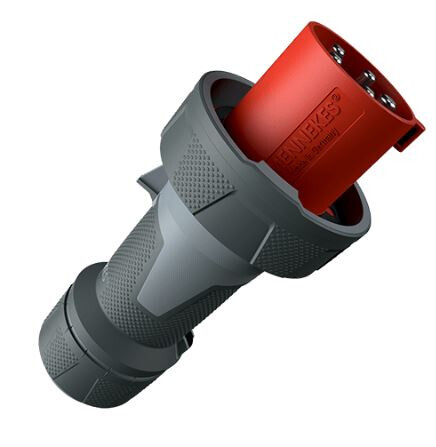

POWER PLUG 13212 63A5P6H400V IP67
Product number
1501337
Plugg 63A 400V 5P 6H IP67 med legering
Plugg 63A, 5Pinner, 400V IP 67 med skruklemmer og nikkelbelagte kontakter for havbruk / sjø og annet røft miljø. Varmebestandige kontaktsett, helstøpt kapsling. Kabelgjennomføring, tetning og strekkavlater med beskyttelse mot knekk og bøy
Tilbehør: endelokk el.nr. 1501335
Product details
Technical specifications
IEC-amperage63 A
Amperage according to UL/CSA (for UL-version)60 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Phase inverterno
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Contact materialCuZn
Surface treatment contactsNickel-plated
Product codes
SAPAEV781
El number1501337
Product number1501337
GTIN/EAN4015394238829
Manufacturer part number13212
Vendor material number1501337
Basic information
Package measurements (L x W x H)255 x 115 x 115 mm
Package volume3.372 l
Package weight1.52 kg
Base uniteach
Package units1 / 10 / 225
Usage quantity–
UNSPSC39121402
BrandMENNEKES
Country of OriginDE Germany
Customs tariff code85366900
