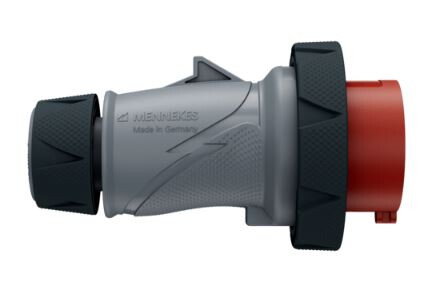

POWER PLUG POWERTOPXTRA 13624 16A5P6H400V IP67/ IP69
Product number
1505412
CEE-plugg PTX 416-6 400V IP69
CEE-plugg PowerTOP Xtra 416-6 400V IP67/ IP69
Schroeftechniek - ErgoCONTACT
ergonomische behuizing
met rubber beklede schroefverbinding
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Phase inverterno
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Contact materialCuSn
Military modelno
Product codes
SAPDIK751
El number1505412
Product number1505412
GTIN/EAN4015394303145
Manufacturer part number13624
Vendor material number1505412
Basic information
Package measurements (L x W x H)170 x 90 x 90 mm
Package volume1.377 l
Package weight0.26 kg
Base uniteach
Package units1 / 10 / 100 / 1120
Usage quantity–
UNSPSC39121402
BrandMENNEKES
Country of OriginDE Germany
Customs tariff code85366900
