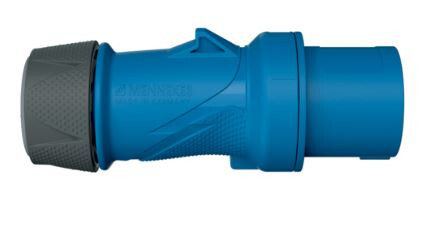

POWER PLUG POWERTOPXTRA 16A3P 6H230V - IP54
Product number
1503312
13502,Plugg PowerTOP Xtra 16A3P 6H230V IP54
Plugg PowerTop Xtra 16A3P 6H230V IP54 Ergonomisk hus Gummiert skruforbindelse Skruteknologi. Erstatter Mennekes 148A (1503300)
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles3
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Clock hour position6 h
Identification colourBlue
RAL-number5007
Phase inverterno
Degree of protection (IP)IP54
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Product codes
SAPCMI096
El number1503312
Product number1503312
GTIN/EAN4015394291817
Manufacturer part number13502
Vendor material number1503312
Basic information
Package measurements (L x W x H)165 x 35 x 40 mm
Package volume0.231 l
Package weight0.16 kg
Base uniteach
Package units1 / 10 / 1120
Usage quantity–
UNSPSC39121402
BrandMENNEKES
Country of OriginDE Germany
