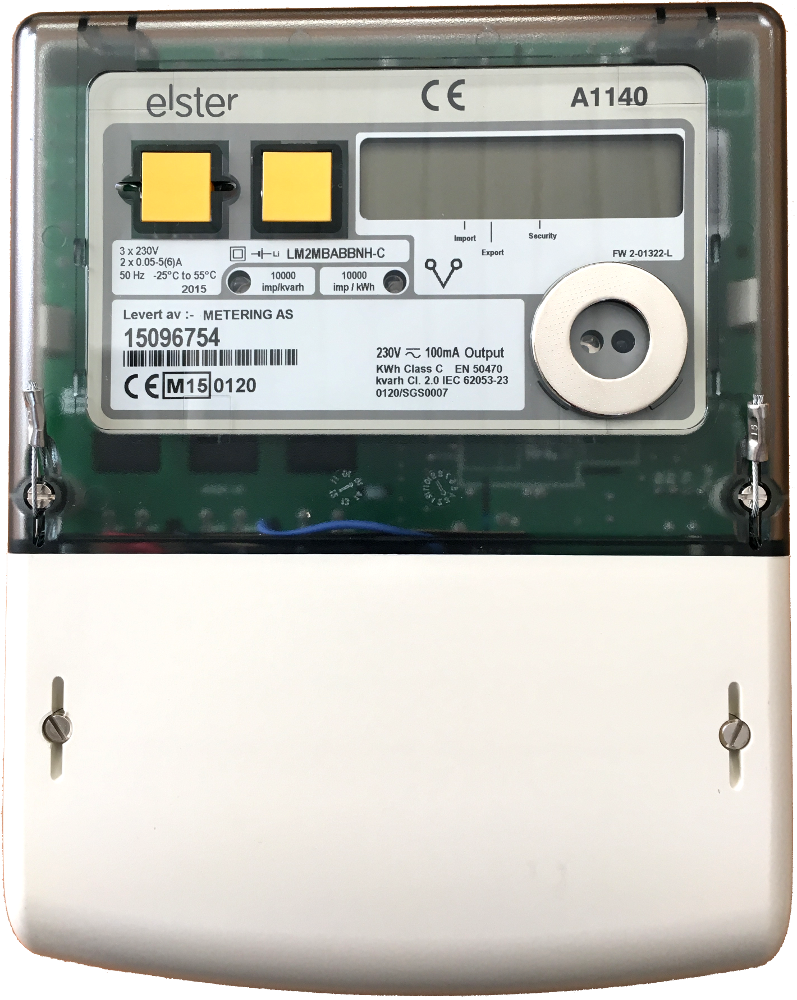

TREFASE MÅLER A1140 LM2 3X230V 5A
Product number
8200315
Elektronisk smartmåler A1140 LM2 , 3x230V , -/5A, MID
Elektronisk smartmåler A1140 LM2 , 3x230V , -/5A, MID , kan leveres med kommunikasjon
Product details
Technical specifications
Type of meterElectronic
Nominal current (In)5 A
Max. current (Imax)6 A
Nominal voltage (Un) N-L230 - 230 V
Nominal voltage (Un) L-L230 - 230 V
Accuracy classC
Pole typeThree conductor
ModelMeasurement transformer
Energy typeEffective power and reactive power
Suitable forPurchase/supply
Tariff typeMulti-tariff
Tariff controlInternal
Measurement type load profileyes
Escapement mechanismyes
Calibratedyes
Product codes
SAPDCX042
El number8200315
Product number8200315
GTIN/EAN7090028911221
Manufacturer part number8200315
Vendor material number8200315
Basic information
Package measurements (L x W x H)170 x 50 x 230 mm
Package volume1.955 l
Package weight0.94 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC41113708
BrandMETERING
Country of OriginGB United Kingdom
Customs tariff code90283000
