A10-0,6 MXLE-45P
Product number
1083301
A10-0,6 MXLE-45P

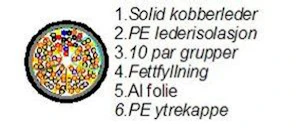

Entrådet parkabel 0,6mm lederdiameter. Oppbygging: skummet polyetylen lederisolasjon, fettfyllning, Al-folieskjerm og Polyetylen ytrekappe, 10 pars grupper med farget merkebånd. Fargekode: Norsk parkabel
Product details
Technical specifications
Conductor surfaceBare
Diameter conductor0.6 mm
Conductor categoryClass 1 = solid
Number of cores20
Number of stranding elements10
Stranding elementPairs
Material core insulationPolyolefin
Specification core insulationOther
Core identificationColour
Screen over stranding elementNone
StrandingBundles and layers
Screen over strandingFoil
Longitudinal water blocking cableyes
Radial water blocking cableyes
Suitable for underground installationyes
Product codes
SAPDCW798
El number1083301
Product number1083301
GTIN/EAN7045210002621
Manufacturer part number10021199
Vendor material number1083301
Basic information
Package measurements (L x W x H)1000 x 11 x 11 mm
Package volume0.121 l
Package weight0.139 kg
Base unitm
Package units1
Usage quantity1
UNSPSC26121604
BrandNEXANS
Country of OriginSE Sweden
Customs tariff code85444911
