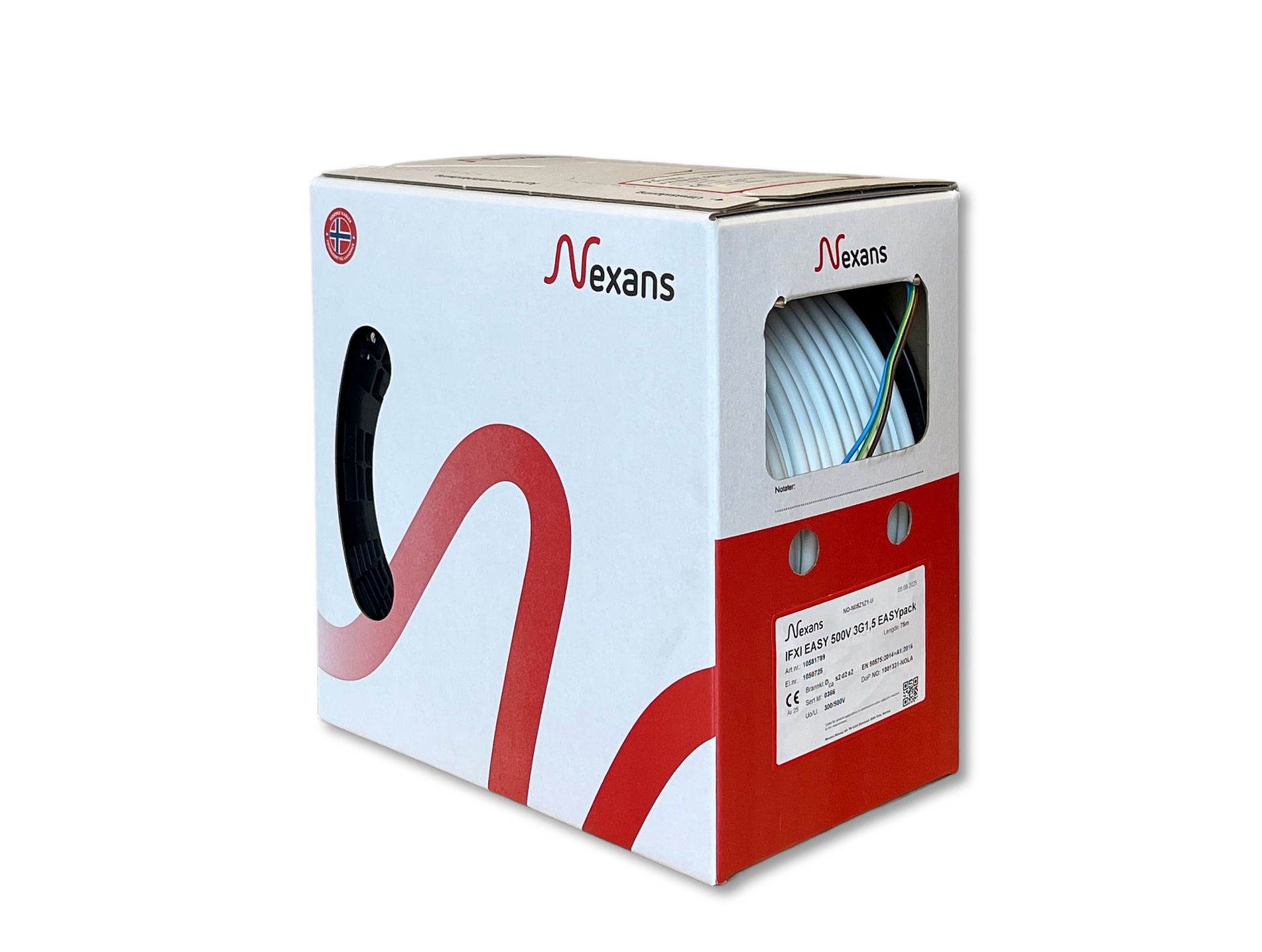

IFLI EASY-R 250V 2x1/1 EASYpack 125
Product number
1050715
IFLI EASY-R 250V 2x1/1 EASYpack 125
IFLI EASY-R 250 V er en halogenfri signalkabel med snodde ledere til fast opplegg
halogenfri toleder utgave av kabeltypen PFLP 250 V. Konstruksjon og test standard: NEK 591, NEK IEC 61034/EN 50268, NEK IEC 60754/EN 50267, NEK IEC 60332-3C/EN 50266 Konstruksjon: Leder: Entrådet, rund, glødet kobberleder Isolasjon: Halogenfri polymer Fyllkappe: Halogenfri, ekstrudert Jordleder: Flertrådet, parallell kobberleder Metallkappe: Aluminiumsbånd i kontinuerlig kontakt med jordlederen Ytre kappe: Halogenfri polymer Farge: Hvit Maks. kontinuerlig ledertemperatur: 70 °C
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor0.79 mm²
AWG size18
Nominal cross section conductor (AWG)18 kcmil
Diameter conductor1 mm
Conductor categoryClass 1 = solid
Number of cores2
Twisted coresyes
Material core insulationPolyolefin
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Core colourSeveral
Product codes
SAPDMK028
El number1050715
Product number1050715
GTIN/EAN7045210138542
Manufacturer part number10590284
Vendor material number10590284
Basic information
Package measurements (L x W x H)1000 x 7 x 7 mm
Package volume0.05 l
Package weight0.07 kg
Base unitm
Package units125 / 4000
Usage quantity–
UNSPSC32000000
BrandNEXANS
Country of OriginNO Norway
Customs tariff code85444921
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.448
GWP unitm
Data source for GWPco2data.fi
ID from emition database7000000480
