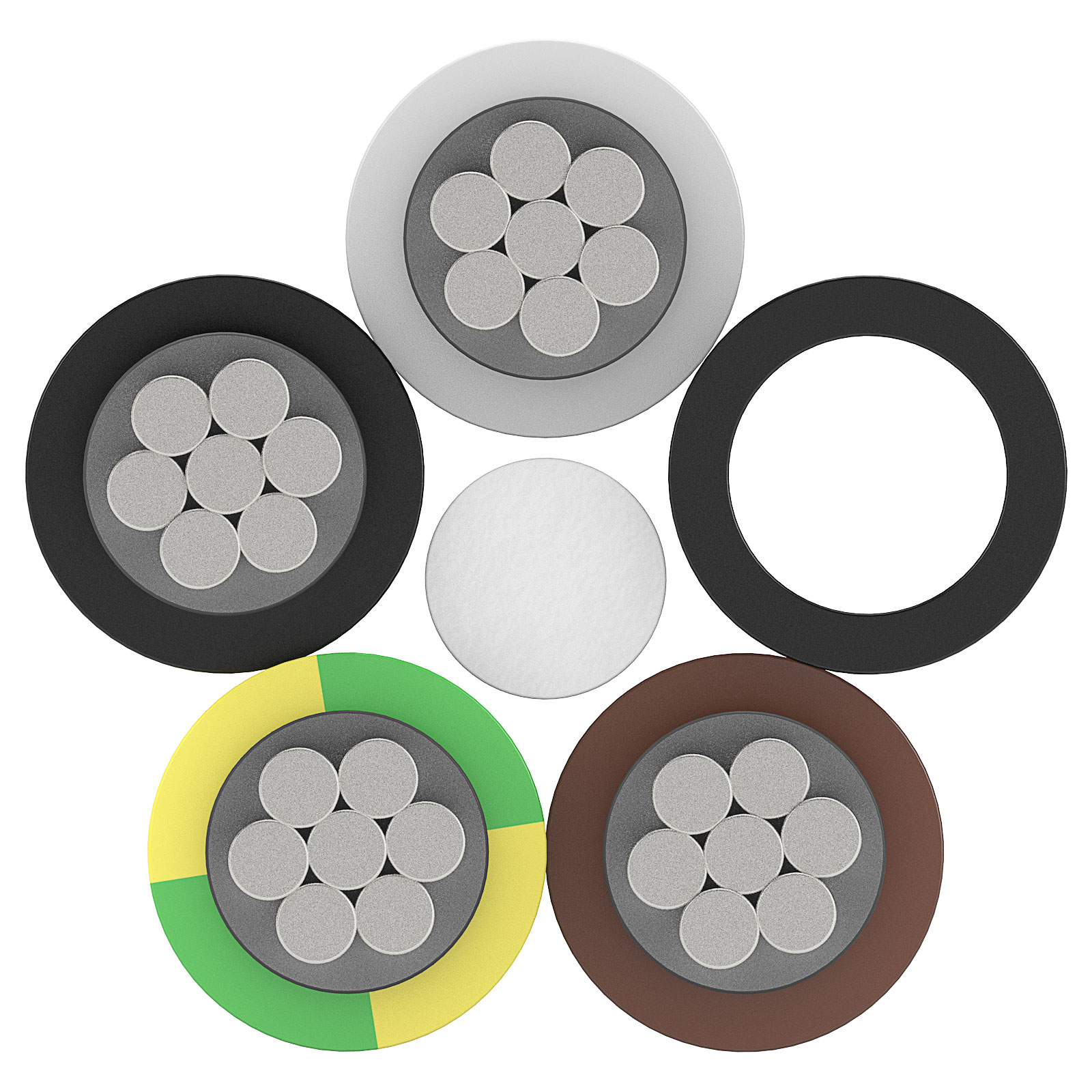

TXXI-O Inntak 1kV 4G300A
Product number
1007468
Halogenfri og brannhemmende kraftkabel beregnet for inntak, veilys eller generell utendørs bruk.
Product details
Technical specifications
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor300 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.1 Ohm/km
Shape of conductorRound
Number of cores4
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2no
Core identificationColour
Laminated sheathno
Fibre optic elementsno
With protective conductoryes
Inner semi-conducting layerno
Product codes
SAPDLU331
El number1007468
Product number1007468
GTIN/EAN7330000190436
Manufacturer part number10576217
Vendor material number10576217
Basic information
Package measurements (L x W x H)1000 x 73.6 x 73.6 mm
Package volume5.417 l
Package weight5 kg
Base unitm
Package units1 / 400
Usage quantity–
UNSPSC32000000
BrandNEXANS
Country of OriginSE Sweden
Customs tariff code85444942
