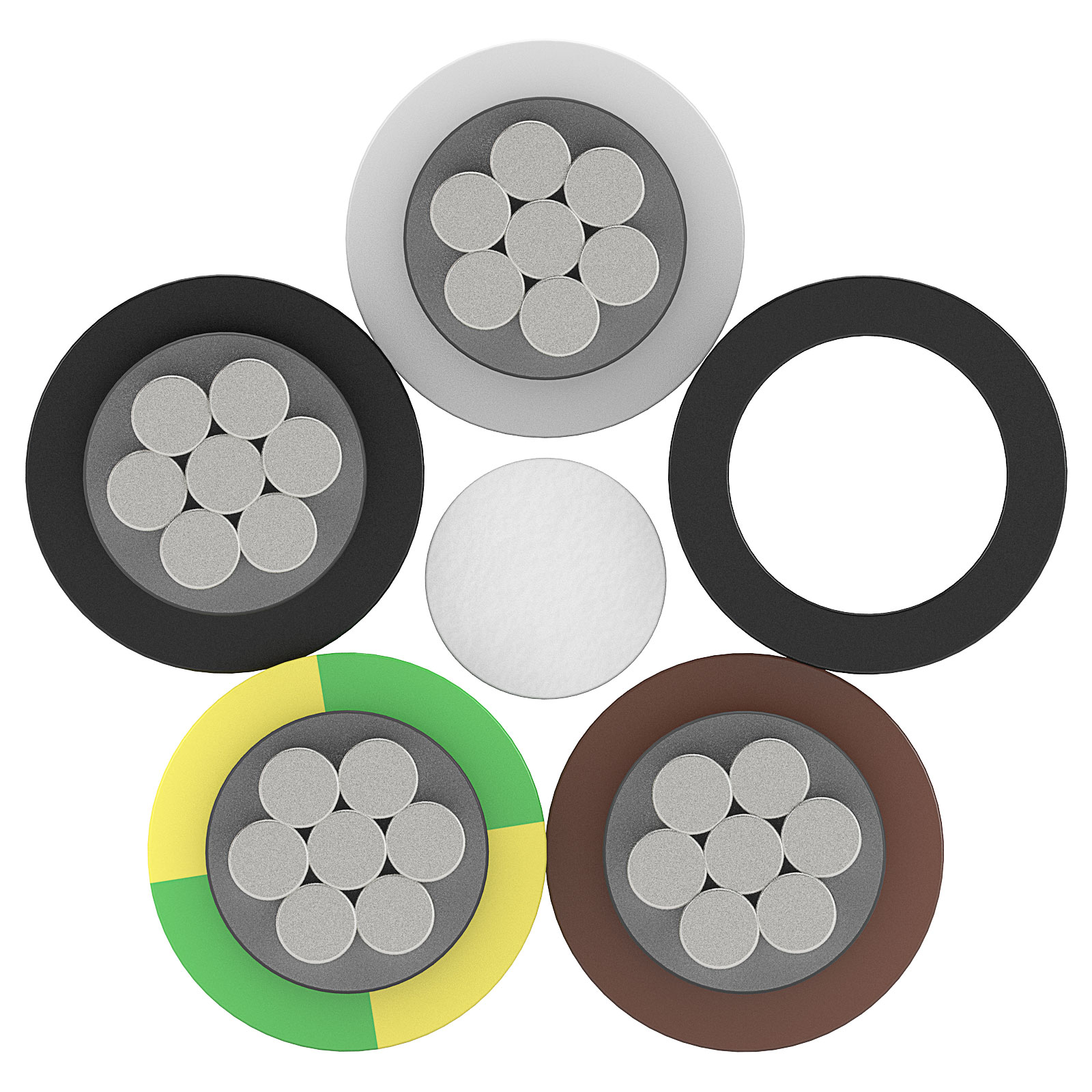

TXXI-O Inntak 1kV 4G50A
Product number
1007478
Halogenfri og brannhemmende kraftkabel beregnet for inntak, veilys eller generell utendørs bruk.
Product details
Technical specifications
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor50 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.64 Ohm/km
Shape of conductorRound
Number of cores4
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2no
Core identificationColour
Laminated sheathno
Fibre optic elementsno
With protective conductoryes
Inner semi-conducting layerno
Product codes
SAPDLU336
El number1007478
Product number1007478
GTIN/EAN7330000141483
Manufacturer part number10556897
Vendor material number10556897
Basic information
Package measurements (L x W x H)1000 x 34 x 34 mm
Package volume1.156 l
Package weight1 kg
Base unitm
Package units1 / 700
Usage quantity–
UNSPSC32000000
BrandNEXANS
Country of OriginSE Sweden
Customs tariff code85444941
