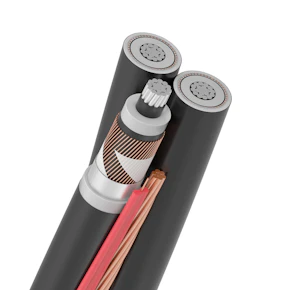

YSLF-J 24kV 3x1x240A KGF50 MP
Product number
1054244
Diffusjonstett høyspentkabel med termoplastisk isolasjon, TPI, ytre ledende sjikt klargjort for kappetesting. 1 stk Cu- wire og et rødt søkbart merkebånd med kundens eget kabelnummer snodd sammen med fasene. Merkebåndet tilfredsstiller kravet til varig merking.
No product description available.
Product details
Technical specifications
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor150 mm²
Diameter conductor14.1 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.206 Ohm/km
Shape of conductorRound
Number of cores3
Material core insulationOther
Specification core insulationOther
Core identification according to HD 308 S2yes
Core identificationNumbers
Laminated sheathyes
Fibre optic elementsno
With protective conductoryes
Product codes
SAPDTV560
El number1054244
Product number1054244
GTIN/EAN7045210138320
Manufacturer part number10588494
Vendor material number10588494
Basic information
Package measurements (L x W x H)1000 x 82.1 x 82.1 mm
Package volume6.74 l
Package weight5.4 kg
Base unitm
Package units1 / 500
Usage quantity–
BrandNEXANS
Country of OriginNO Norway
Customs tariff code85446002
