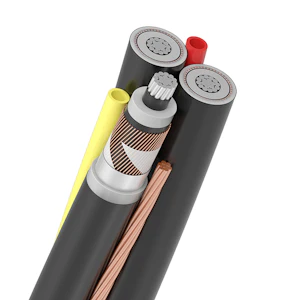

YSLF-OJ 24kV 3x1x240A KGF25
Product number
1054227
Diffusjonstett høyspentkabel med termoplastisk isolasjon, TPI, ytre ledende sjikt klargjort for kappetesting. 2 stk fiberrør og en Cu-wire snodd sammen med fasene.
No product description available.
Product details
Technical specifications
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor95 mm²
Diameter conductor11.4 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.32 Ohm/km
Shape of conductorRound
Number of cores3
Material core insulationOther
Specification core insulationOther
Core identification according to HD 308 S2yes
Core identificationNumbers
Laminated sheathyes
Fibre optic elementsyes
With protective conductoryes
Product codes
SAPDTV540
El number1054227
Product number1054227
GTIN/EAN7045210138023
Manufacturer part number10588406
Vendor material number10588406
Basic information
Package measurements (L x W x H)1000 x 82.1 x 82.1 mm
Package volume6.74 l
Package weight5.4 kg
Base unitm
Package units1 / 500
Usage quantity–
BrandNEXANS
Country of OriginNO Norway
Customs tariff code85446002
