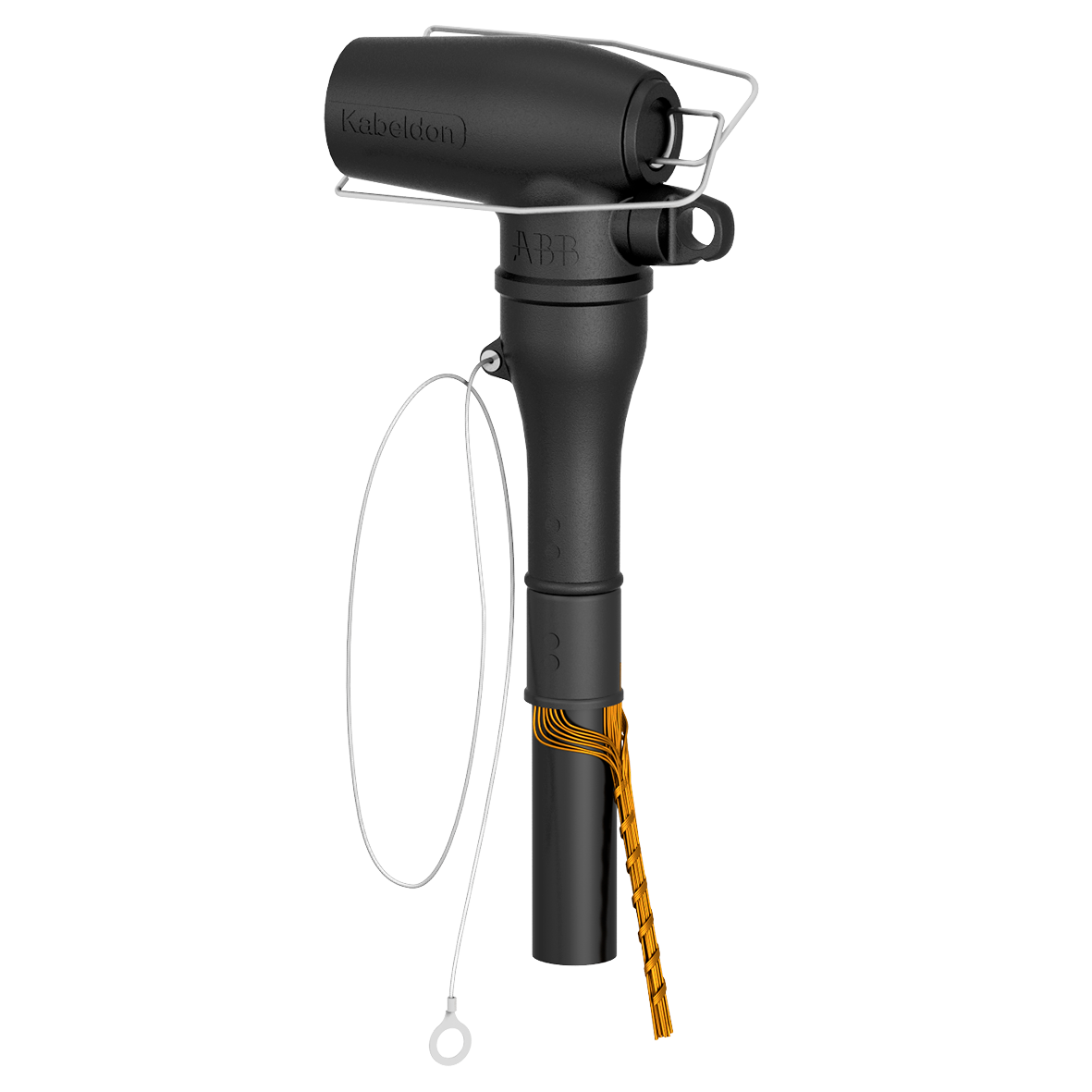

BER.AVSLUTNING CSE-A 24250-01 VINKEL KONT. 10-16MM², 24KV
Product number
1141602
BER.AVSLUTNING CSE-A 24250-01
Berøringssikker endeavslutning med skrukabelsko for 1-/3-leder PEX-/EPR-isolert kabel. Brukes der det er krav til berøringssikker betjening. Tilpasset standard gjennomføring i.h.h.t EN 50181 - interface A. Leveres med kapasitivt målepunkt og jordleder. For innen-/utendørs bruk. Leveres komplett
Product details
Technical specifications
Suitable for indoor useyes
Suitable for outdoor useyes
Rated voltage U0/U (Um)12.7/22 (24) kV
Nominal current according to EN 50180/EN 50181A (250 A)
Type of plug terminationAngle plug
Connection type conductorScrew connection
Suitable for number of cores1
Screenedyes
Cable lug includedyes
Nominal cross section10 - 16 mm²
Earthing cable length0.5 m
Width63 mm
Height220 mm
Length124 mm
Product codes
SAPAQV001
El number1141602
Product number1141602
GTIN/EAN7331980048298
Manufacturer part number6234.1214.0
Vendor material number6234.1214.0
Basic information
Package measurements (L x W x H)245 x 210 x 185 mm
Package volume9.52 l
Package weight2.5 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandNKT
Country of OriginSE Sweden
