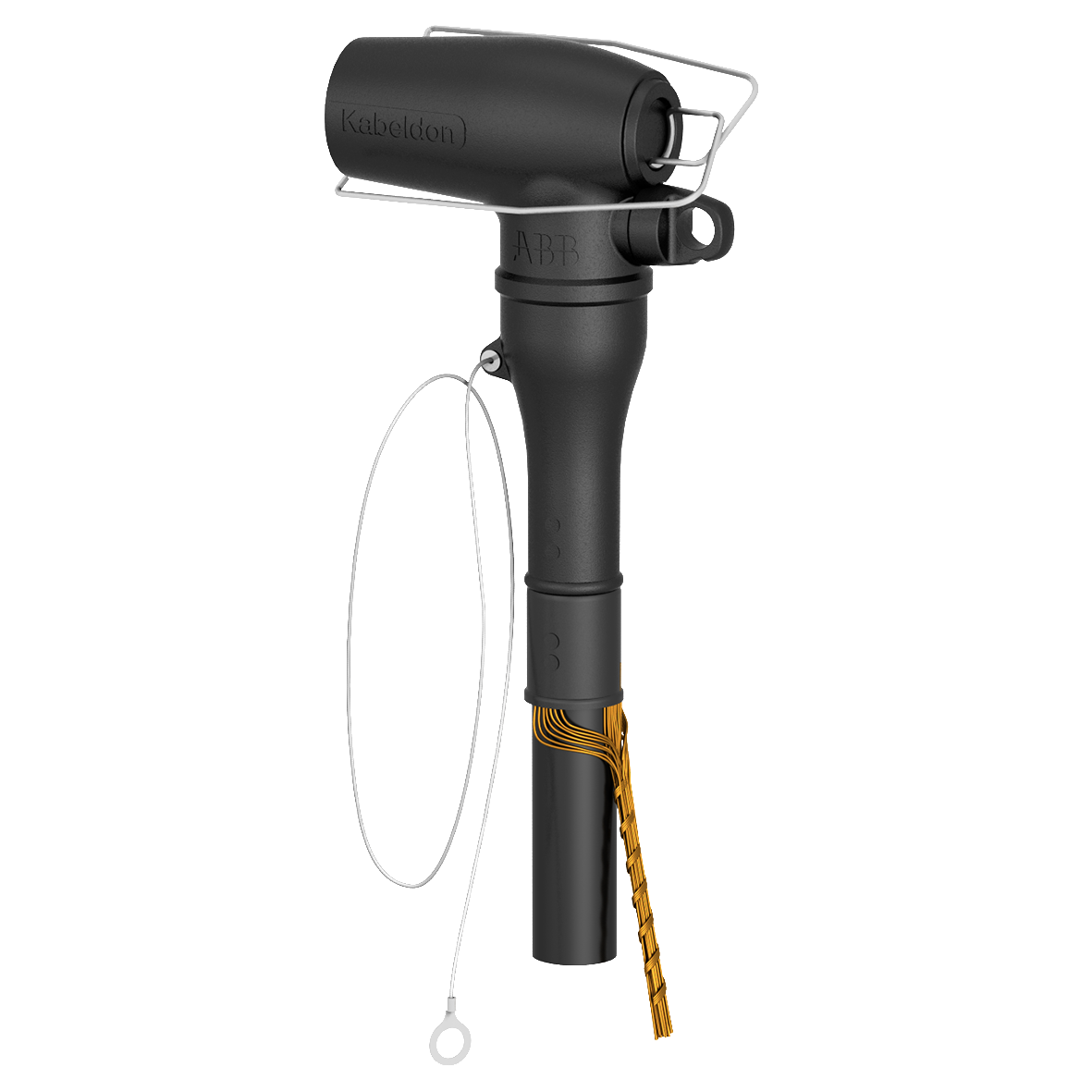

SKJERMET KONTAKT 12KV 25-95MM CSE-A 12250-02, KABELDON
Product number
1141601
Brukes der det er krav til berøringsikker betjening. Leveres med kapasitivt målepunkt og jordleder.
Product details
Technical specifications
Suitable for indoor useyes
Suitable for outdoor useyes
Rated voltage U0/U (Um)12.7/22 (24) kV
Nominal current according to EN 50180/EN 50181A (250 A)
Type of plug terminationAngle plug
Connection type conductorScrew connection
Suitable for number of cores1
Screenedyes
Cable lug includedyes
Nominal cross section25 - 95 mm²
Earthing cable length0.5 m
Width63 mm
Height220 mm
Length124 mm
Product codes
SAPGDH130
El number1141601
Product number1141601
GTIN/EAN7331980048281
Manufacturer part number6234.1213.0
Vendor material number6234.1213.0
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight2.32 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC26121630
BrandNKT CABLES
Country of OriginSE Sweden
