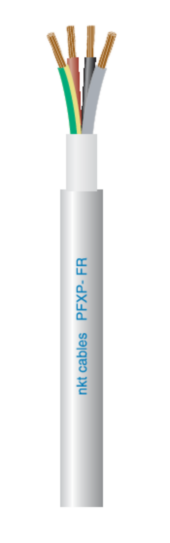

PFXP 1 kV FR 3G10 T 500
Product number
1056572
Leder: flertrådet glødd kobber. Isolasjon: pvc. Fyllkappe: pvc. Ytterkappe: pvc. Farge: hvit. Max leder temp.: 70°C. Merking: type,dimensjon,meter.
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor10 mm²
AWG size8
Diameter conductor4.1 mm
Conductor categoryClass 2 = stranded
Number of cores3
Twisted coresno
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Core identificationColour
Core colourWhite
With protective conductoryes
Max. permitted conductor temperature70 °C
Product codes
SAPDFP426
El number1056572
Product number1056572
GTIN/EAN5702950190125
Manufacturer part number1056572
Vendor material number1056572
Basic information
Package measurements (L x W x H)1000 x 20 x 20 mm
Package volume0.4 l
Package weight0.66 kg
Base unitm
Package units1 / 50 / 500
Usage quantity–
UNSPSC26121500
BrandNKT
Country of OriginPL Poland
Customs tariff code85444941
