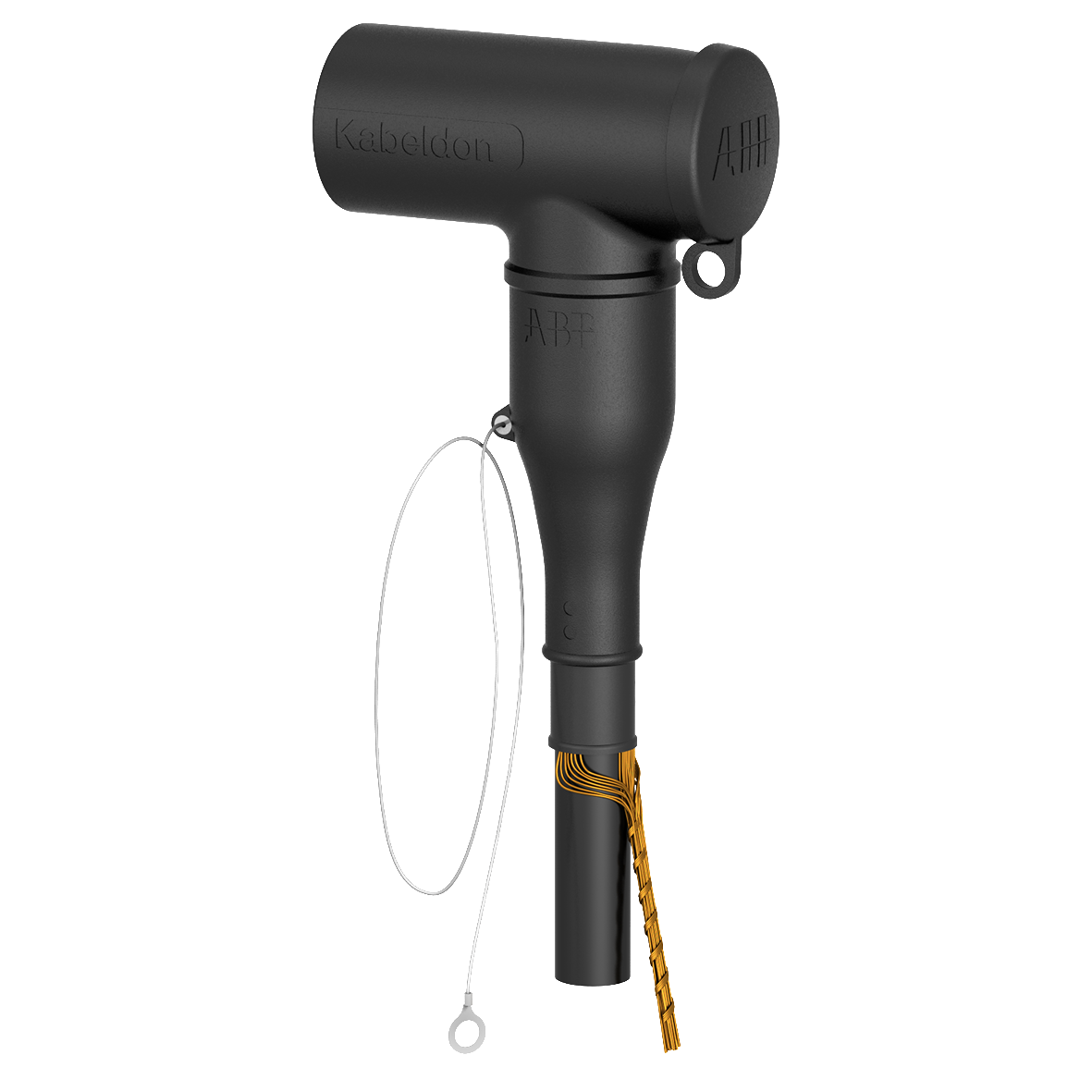

SKJERMET KONTAKT 12KV 95-300MM CSE-A 12630-02, KABELDON
Product number
1141623
Brukes der det er krav til berøringsikker betjening. Leveres med kapasitivt målepunkt og jordleder.
Product details
Technical specifications
Suitable for indoor useyes
Suitable for outdoor useyes
Rated voltage U0/U (Um)12.7/22 (24) kV
Nominal current according to EN 50180/EN 50181C (630 A)
Type of plug terminationT-connector
Connection type conductorScrew connection
Suitable for number of cores1
Screenedyes
Cable lug includedyes
Nominal cross section95 - 300 mm²
Earthing cable length0.5 m
Width81 mm
Height265 mm
Length172 mm
Product codes
SAPGDH137
El number1141623
Product number1141623
GTIN/EAN7331980048403
Manufacturer part number6234.1228.0
Vendor material number6234.1228.1
Basic information
Package measurements (L x W x H)290 x 200 x 200 mm
Package volume11.6 l
Package weight5 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC26121630
BrandNKT
Country of OriginSE Sweden
